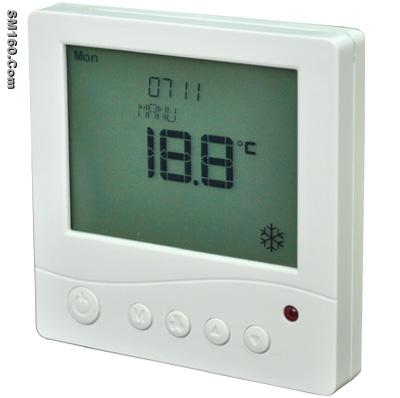

The TR3100AC series thermostat is a stand-alone microprocessor based thermostat
with LCD display .The thermostats are designed to control room temperature by way of
 on/off controlling the fan coil units(with or without motorized valves), air damper or
 electric heaters in heating, cooling and ventilation applications.

Features
• Large LCD, Luxurious appearance
• Microprocessor based
• Reliable separate power unit
• Dual display of room temperature and set temperature, easy to operate
• Time display and week day display
• Adjustable High/medium/low fan speed and dynamic fan speed display
• Heat / Cool selection
• Customizing available
• Remote control optional

Models and Application
TR3100AC-B: control fan coil only, It directly control the fan speed and running/stopping
                          of fan coil uni ts.
TR3100AC-DA : control fan coil and valve. When room temperature reaches the set-point,
                              it will close the valve with the fan coil still running.
TR3100AC-DB : control fan coil and valve. When room temperature reaches the set-point,
                              it will close the valve and turn off the fan coil unit.
TR3100AC-F: control motorized air damper, when temperature reaches the set-point, the
                          air damper will be closed.

Specifications
Power Consumption: < 2W
Set point Range: 5~35 degree C
Accuracy: +/-1 degree C
Max. Load: 400W
Power Supply: 220V AC + 15%  50/60Hz
Housing: Anti-flammable ABS
Dimension: 86X86X13 MM
Agency Approval: CE compliant
