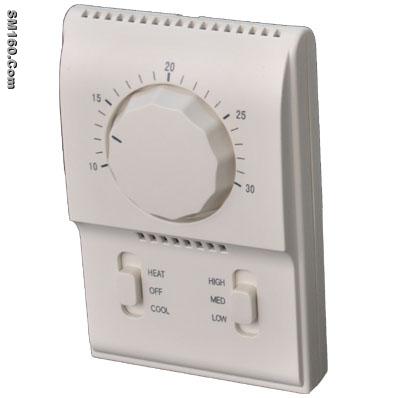

TR2100 Mechanical Room Thermostat

High/medium/low fan speed switch
Heat/off/cool switch



Features

? Anti-flammable PC materials.
? Air inflated membrane box sensing element.
? Suitable for 2 pipe or 4 Pipe fan coil system
? Slide switch, easy to operate.
? Cool/heat selection.
? High/medium/low fan speed selectable.
? Precisely mechanical driving structure ensures
  long-term operation..
? Can control 2-wired motorized damper
  (2-way or 3-way), and compatible with 3-wired
  motorized damper,solenoid valve or air damper.
? Surface mounting for easy installation.

Models

TR2100B: control fan coil only
TR2100D: control fan speed and motorized valve.
TR2100F: control motorized air damper
TR2100S: 4-pipe fan coil control

Specifications

Sensing element: Air inflated membrane box
Power Consumption: < 2W
Set-Point Range: 10~30 deg C
Accuracy: +/-1 deg C
Max. Load: 400W
Power Supply: 230V AC  50/60HZ
Housing: Anti-flammable PC
Dimension: 85X130X40 MM
Approval: CE compliant
