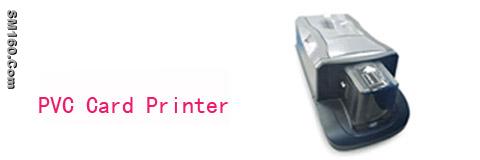

Model Name         PVC card printer

Printing Method    Color Dye Sublimation / Monochrome Thermal Transfer

Resolution         300 dpi x 300 dpi

Display            LCM control panel

Memory             32MB ; 1MB Flash

Printing Speed     Speed Mode: 25 sec per YMCKO single side
Premium photo mode: 32 sec per YMCKO printing

Accepted Card Specification Size: CR-80 86mm(L) x 54mm(W) / 3.375"(L) x 2.125"(W)
Thickness : 0.3 mm* to 1.0 mm / 10 mil* to 40 mil
* 0.3mm (10mil) only supports single side printing

Card Input Capacity    100 Cards (0.76 mm / 30 mil thickness)

Card Out Capacity  100 Cards (0.76 mm / 30 mil thickness)

Software Driver    Windows 2000 / XP, Mac OS 10.2 and above

Communication Interface USB 1.1 / USB 2.0 full speed

System Request     IBM-PC or compatible, Windows 2000/XP, Pentium class 133MHz Computer with 128MB of RAM or higher, 100 MB free hard disk space or higher

Dimensions
(W x L x H)        275 mm x 508 mm x 251 mm / 10.83" x 20" x 9.9"

Weight             9.1 kg / 20 ibs

Power Supply       100 ~ 240 VAC; 50Hz ~ 60Hz

Operating Condition    10° ~ 32° C / 59° to 89.6°F; 20 ~ 75% non-condensing

Ribbon Options     YMCKO (200 prints)
Resin K (1,000 prints)
KO (500 prints)
YMCKOK(170 prints)

Optional Encoding Modules
(SDK upon request) ISO Magnetic stripe card encoder, Dual high- and low-coercivity, Track 1, 2 and 3. Contact Smart Card Encoding Module Contactless Smart Card Encoding Module (Mifare ISO 14443 type A available)

Accessories        Clean Kit (Clean cards & Swaps)
Clean Module (Air filter & Clean roller)
Mag Head Clean Kit (Clean cards & Specific swaps)
