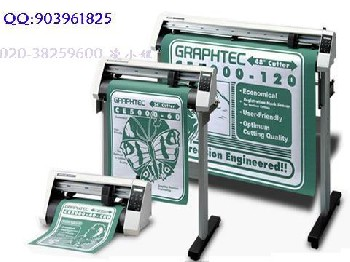

model                CE5000-40CRP     CE5000-60   CE5000-120

 design              Drum, digital servo motor drives

Effective scope of work              375mm】50m    603mm】50m 1213mm】50m

Compatible with the paper size       max：484mm    max：712mm  max：1346mm

                     min：50mm        min：50mm     min：50mm

 the accuracy cutting scope           356mm】2m     584mm】5m   1194mm】5m

Maximum speed        60cm/s（All directions）        100cm/s（45∑direction）

biggest Pressure of knife                         20gf-300gf， 31 levels for option   20gf-450gf， 38 levels for option

 The number of knife /pen that can be loaded   1（one knife or one pen）

 Machinery Precision  0.005

 Software coding ccuracy  GP-GL Mode：0.1，0.05，0.025，0.01mm

                      HP-GL Mode：0.025mm

Cutter type           CB09UA-SP 45 45∑Super-steel knife： For cutting thin material, such as stickers

                      CB15U-SP 45∑Super-steel knife： For cutting thick materials, such as paperboard

 knife rest type          PHP31-CB09： Blue copper head knife rest， cooperate with CB09UA-SP cutter to use

                      PHP31-CB15B： green copper head knife rest， cooperate with CB15U-SP cutter to use

                      PHP32-CB15N： Low wastage red plastic knife rest, with the spring, cooperate with CB15U cutter to use

drawing pen            HC500 Watercraft ceramic pen（0.2-0.5mm， the line’s thick and thin is the same and in focus）

                      HC500F Watercraft ceramic pen（0.2-0.5mm， the line’s thick and thin is the same, Offset graphics）

                      KF500 Watercraft fibre pen（0.3mm abrasion to 0.5mm）

                      KB500 Watercraft ball pen（0.25mm-0.3mm High-speed graphics, not dry, butter paper graphic）

                      KB140 Watercraft ball pen（0.15mm-0.2mm High-speed graphics， PHP31-BALL cooperate with the cap of PHP31-BALL pen to use ）

                     ink pen ， limit to 500g pressure

Interface               RS-232C Serial（COM），USB（full speed）

 Driving instructions    GP-GL/HP-GL

 Origin set           random

 EMS memory           2M

 Distance precision   【0.1%（Graphics mode）

 Repeat accuracy      0.1mm/2m

 Vertical accuracy    0.2mm/900mm（Graphics mode）

Source                100-200V，50/60Hz；220-240，50/60Hz

Power               max  100VA

 Operating Environment   10-35 ìC，35-75% relative humidity（No condensation）

Physical Dimensions     40 model： 623(W)】285(D)】223m(H)

                      60 model： 851(W)】585(D)】1004mm(H)

                      120 model：1487(W)】744(D)】1194mm(H)

Weight（contain bracket） 9.4Kg             25Kg        40Kg

Origin               Japan
