Product Description

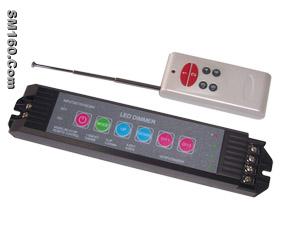

BC-311 is a universal high-performance dimming controller, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present. ABS engineering plastic panel, with soft-touch function button and exquisite appearance, it can control various LED single color lights.
Performance parameter:
1、0~100% brightness adjust,8 changing modes,256 scale levels.
2、 Automatically adapt to the single color Led light which works between DC5V-24V.
3、3 Channels output control, maximum output 18A total ,sustain to full-load work.
4、Color strobe, color skipping and color gradual are available for choice
5、0%, 25%, 50%75%, 100% brightness easy to select.
6、Speed and brightness mode for select
7、3 DIY modes
Performance parameter:
|
型号Model
|
BC-311
|
BC-311RF
|
|
Input voltage
|
DC12V-DC24V
|
DC12V-DC24V
|
|
Max current load
|
6A/CH×3
|
6A/CH×3
|
|
Max output power
|
220W(12V)450W(24V)
|
220W(12V)450W(24V)
|
|
Scale level
|
256 level
|
256 level
|
|
Product Dimension
|
L211xW40xH30(mm)
|
L211xW40xH30(mm)
|
|
Weight (G.W)
|
180g
|
210g
|
|
Remote control distance
|
NO
|
50m with obstacles:100m without obstacles
|
|
Control type
|
Common anode
|
Common anode
|
Please contact us for more details!
