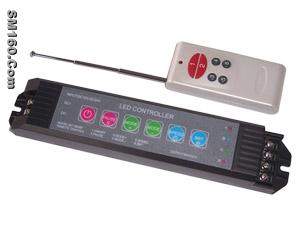

Multi function LED Controller

Negotiable / Piece(s)

Min. Order 1 Piece(s)

ZHUHAI BINCOLOR ELECTRONIC TECHNOLOGY CO.,LTD

Multi function LED Controller

Price: Negotiable / Piece(s)
Min. Order: 1 Piece(s)
Stock: 0
Port

Send Inquiry Favorite

ZHUHAI BINCOLOR ELECTRONIC TECHNOLOGY CO.,LTD

Location:: GUANGDONG,China
Main Category:: Electrical and Lighting
Main Products:: LED controller LED Dimmer, DMX Decoder, Dmx Tube, DMX Digital controller,ect.

Contact Info.

Product Description

BC360 series LED controller is a universal RGB controller for entire color changing, which adopted the most advanced PWM (Pulse-Width Modulation) controlling technology at present. ABS engineering plastic panel with soft-touch function button and exquisite appearance, it can control all 4-pin 3-loop (common anode/common cathode) LED RGB full color lights such as LED module, LED strip, LED SMD tape, and high power LED projector, wall-washer, flood light, underwater lamp etc.

Performance parameter

1、 Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.

2、256 levels of grey scale per RGB, even & smooth for color gradual changes, without any flashes.

3、RGB Controller has common anode and common cathode for choice, it can control all the common RGB lights

4、 17 fantastic modes such as color smooth , color skipping, horserace, strobe, etc.

5、 Can stop at static single color, speed & brightness adjustable at pause status.

6、Working with power repeater to expand power output unlimitedly.

Performance parameter：

Model	BC-360	BC-360RF
Input voltage	DC12V-DC24V	DC12V-DC24V
Max current load	6A/CH×3	6A/CH×3
Max output power	220W(12V)450W(24V)	220W(12V)450W(24V)
Scale levels	256 level/CH×3	256 level/CH×3
Product Dimension	L21xW40xH30(mm)	L211xW40xH30(mm)
Weight (G.W)	180g	210g
Remote control distance	No	50m with obstacles:100m without obstacles
Control type	common anode	common anode

Model	BC-370	BC-370RF
Input voltage	DC12V-DC24V	DC12V-DC24V
Max current load	6A/CH×3	6A/CH×3
Max output power	220W(12V)450W(24V)	220W(12V)450W(24V)
Scale levels	256 level/CH×3	256 level/CH×3
Product Dimension	L211xW40xH30(mm)	L211xW40xH30(mm)
Weight (G.W)	180g	210g
Remote control distance	No	50m with obstacles:100m without obstacles
Control type	Common cathode	Common cathode

Please contact us for more details!

ZHUHAI BINCOLOR ELECTRONIC TECHNOLOGY CO.,LTD

Company Introduction

Zhuhai Bincolor Electronic Technology Co., Ltd. is a high-tech enterprise which is dedicated to LED control system. The company's core team has a nine-year extensive industry experience in LED field, and strong research and development capabilities, before the company was founded, it ran based on an electronic studio,. It provided LED related designs and development service to the small and medium-sized enterprises in zhuhai and zhongshan. It provided a strong technical support to the growth of many enterprises.

Our products have won prizes of the contests of lighting and are widely used on various occasions such as billboards, building lighting engineering, interior lighting, etc.
We insist on "technology-based, customer-respect" Management idea, and "quality, innovation and development" concept to develop and produce our products, providing customers with attentive service. We rely on strong technical force and the continuous improvement of quality assurance, production, sales and service system, to provide first-class products and best solutions, creating value for customers.
Customer’s success is our success, Bincolor technology treats every customer with the professional product, good faith cooperation, and willing to create a brilliant future with you.
