Product Description

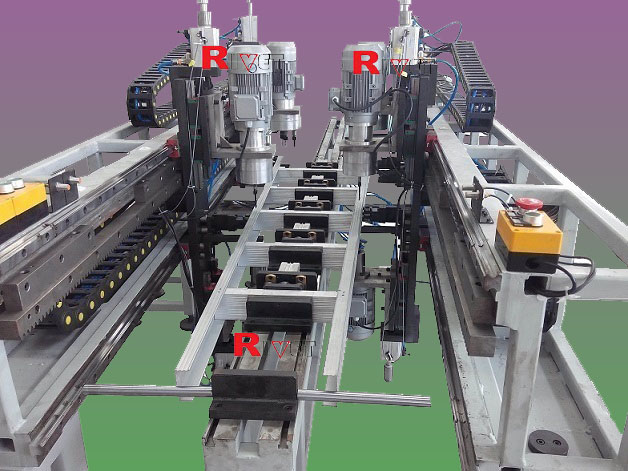

House ladder automatic drilling machine-ZKJ
Wuhan
Rivet Machinery Co.,Ltd produce house ladder automatic drilling machine
(programmable control). Process range:"A"-shape house ladder and slope
ladder. This machine applicabiity variety of different shape and size
rung and profile. Process ladder length range from 1-meter to 4-meter to
mroe and widht range are setting aviable according requirement. The
machine physical size: Length 4.5-Meters, width 2.8-Meters and
height1.8- Meters.
Put rung on position by manual (no need accuracy positioning), press the botton than machine makes rung and profile positioning automatically and fixture
it.Then 2 directions both top and bottom multi-point drilling head
start to working. After drilled that operator will insert the rivets
into holes to start riveting by pneumatic riveter, when finished
riveting that the machine will loosen automatically and take away the
ladder.

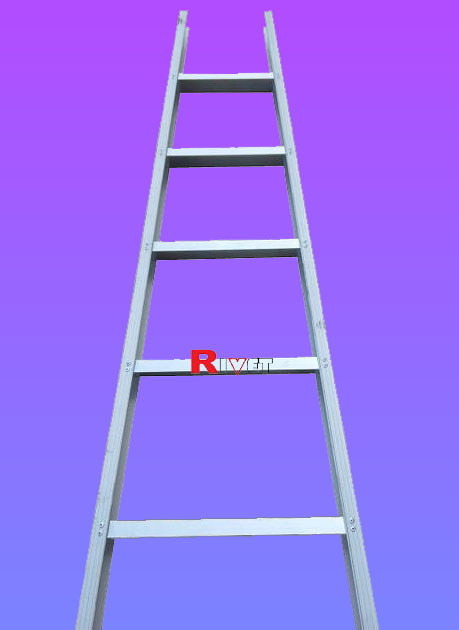

Finished sample
