Product Description

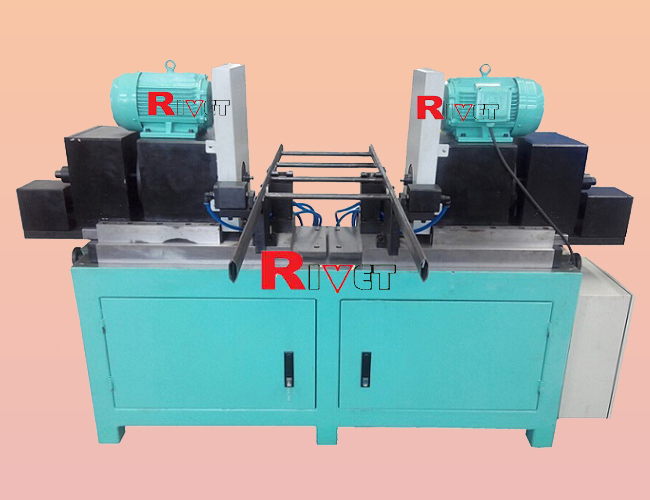

XYJ (Steel ladder expanding & flaring machine)
As a leading manufacturer of riveting machine and riveting industry pioneer--- Wuhan
Rivet Machinery Co.,Ltd's products has continuously innovation and development.
Especially in recent years to use it's patent items and combines with riveting technolgy
developed more than 20 ladder riveting machine and ladder equipments. Ameng them
various ladder machine and ladder equipment have covered all ladders what you can see
from the market. It proud of us that our pneumatic dring machine expanding steel pipe
ladder (ourside diameter is Ф20mm, inside diamter is Ф17mm and wall thickness is 1.5mm)
Characteristics:
◙ Positioning automatically
◙ Rung locking automatically
◙ Ladder width range from 200-800mm adjustable
◙ One working cycle 0.1-99 Seconds adjustable
◙ Pneumatic driving
◙ Min. expanding diameter 8mm
◙ Material:steel pipe, stainless steel, galvanized steel pipe etc.
This is special purpose ladder machine for process cable ladder and buildings ladder etc. It has 2 kinds of operating mode both manual and auto. First to switching at manual
position when adjsuting the machine,put assembed ladder on holder, and lock the guide
plate(steel pipe come out 4.5mm-5mm from profile for flaring), press button of "Expanding
feed/back",expanding
system forward and expanding die inserted into pipe, start the spindel
motor to expand the pipe, after reaches setted expanding time that
expanding die back and expanding system backward, clamping system losen
to finish one step.
Technical parameters:
★ Motor type / Power MN2-100L-6/1.5KW
★ Air pressure 0.7MPa
★ Ladder width range 200-800mm
★ Distance of rung 250mm adjustable
★ Max.thickness of wall 0.5-3mm
★ Inner diameter range Ф8-Ф50mm
★ Processing materials Steel, stainless steel, galvanized steel, etc.

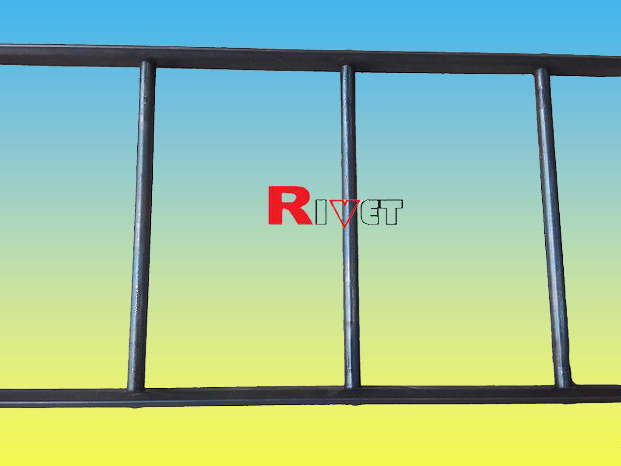

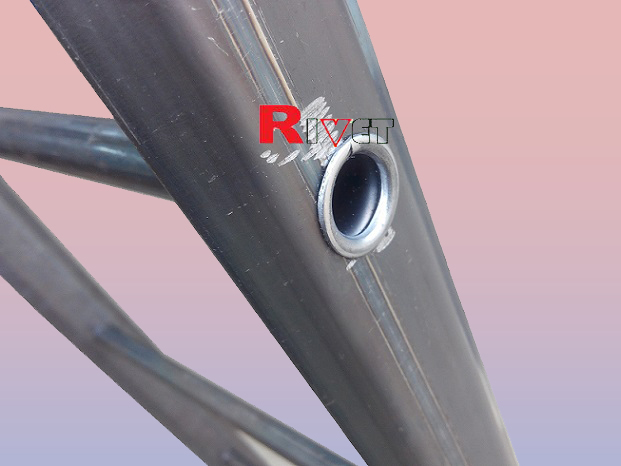

Processed samples
