Product Description

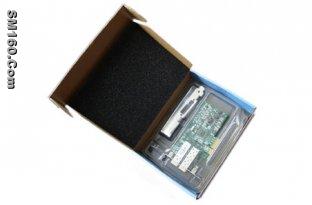

Ethernet Dual-port Optical Gigabit Adapter Card 10002PF
Products Technology Paraments Description
|
Products Name
|
10002PF
|
|
Products Type
|
Server Optical Gigabit Adapter
|
|
Chipset
|
Intel 82571EB Gigabit Controller
|
|
Bus Interface
|
PCI-E
|
|
Whole Duplex
|
Compatible whole duplex and half duplex
|
|
Network interface type
|
SFPSlot*2(1000BASE-SX,1000BASE-LX,1000BASE-ZX),LC fiber
|
|
Transmission speed Mbps
|
1000
|
|
Transmission medium type
|
LC fiber optic cable
|
|
Interface
|
LC
|
|
Cable
|
Single or Multi-mode fiber（62.5m or 50m）
|
|
Network standard
|
IEEE802.3(1000BASE-SX,1000BASE-LX,1000BASE-ZX)
|
|
Long-range awaken function
|
support
|
|
Compatible operating system
|
Microsoft Windows * Server2003 Enterprise Edition, Datacenter Edition (32-bit and 64-bit), Microsoft Windows 2000, Red Hat Linux * 2.4x or later (32-bit and 64-bit), FreeBSD 4.x or later, Nove II Netware * 5.x, 6.x, Sun Solaris * x86, OS8 and later
|
|
LED Indicator Lamp
|
2
|
|
Rated power consumption
|
3.3Watts（3.3V，1A）
|
|
Working Temprerature
|
0-55
|
|
Working Humidity
|
85%
|
|
Stoke Temperature
|
-20-65
|
|
Stoke Humidity
|
85%
|
|
Length
|
12.9 centimeters (5.1 inches)
|
|
Width
|
6.8 centimeters (2.68 inches)
|
Specification parameter
|
Features
|
Advantages
|
|
Intel 82571EB
Gigabit Ethernet controller
|
apply two Gigabit connections in one NIC, thereby increase the server's bandwidth, solve only limited slots,provide superior performance and good reliability and reduce power consumption of the monolithic dual-port PCI Express Gigabit Ethernet controller chipset.
|
|
Multi-core CPU load balancing
|
When used in conjunction with the receiver extension of Microsoft or Linux * scalable I / O devices, Femrice PRO/1000 dual port server adapter can be balance effectively among the network load of multiple CPU cores,so to improve the performance of multiprocessor systems
|
|
Interrupt adjus
|
As well as improve performance ,reducing CPU utilization significantly
|
|
compatible in x4, x8, and x16 PCI Express * slot
|
realize dual-port operation with almost all types of PCI Express server slots (x1, except), and will not interfere when the two ports are running
|
|
Supports most of the network operating system (NOS)
|
can be widely deployed
|
|
Remote management support
|
support industry-standard remote management, thereby reducing support costs
|
|
LC Interface
|
Small interface design with the latest optical standards-compliant
|
|
1000BASE-SX multi-mode
|
compatible with fiber cable and maximum transmission distance up to 275 meters
|
|
Comply with RoHS requirements 2, using lead-free 1
|
Comply with the latest requirements of the European Union (be forced since July 2006), so reducing the use of hazardous substances
|
|
Design the Intel ® PROSet program for Microsoft * Device Manager
|
users can click to easily configure single network card, advanced adapter features, connection group and virtual LAN (VLAN)
|
|
Intel chipset support
|
provide time-limited warranty
|
Products Advantages:
Femrice own brand product Dual-port Optical Gigabit Adapter 10002PF is used for optical network in the Gigabit Ethernet network connectivity.
The designe of Dual-Port Optical Gigabit Adapter 10002PF demonstrate excellent performance in a multi-processor system.
It realize applicating two Optical Gigabit Adapter connections in a single PCI Express * slots, The latest high-performance and self-configuring optical gigabit adapter within dual SFP slots which can applicated two SFP tranceivers ,single mode or multi-mode,short distance or long distance ,any wavelength which you need.
you can choose SFP tranceivers and changeable and pluggable. Support self-configuring ,full and half- duplex.
Provide high quality ,reasonable price well service and guaranteed 100%.
Product Description
Femrice PRO/1000 Dual-port Ethernet Gigabit Adapter
Applicate two Optical Gigabit Adapter connections in a single PCI Express * slots, you can applicate two high-performance PCI Express * 1000BASE-SX, 1000BASE-LX and 1000BASE-ZX adapter in limited server slot .and with the advanced server features to achieve multi-gigabit scalability and uptime.
Reliable connectivity
Femrice PRO/1000 Dual Port Optical Gigabit Adapter, can added multi-port fiber connectivity to enhance network performance and also saving valuable PCI Express (PCIe *) server slots. In Gigabit Ethernet connection of optical network, PCIe equip the dedicated input / output (I / 0) Bandwidth can guarantee superior performance, and donot take up bus bandwidth. In addition, Femrice PRO/1000 dual port Optical Gigabit Adapter design, can demonstrate excellent performance among multi-processor system. When used in conjunction withthe receiver extension of Microsoft or Linux * scalable I / O devices, Femrice PRO/1000 dual port Optical Gigabit Adapter can be balance effectively among the network load of multiple CPU cores,so to improve the performance of multiprocessor systems.
Femrice PRO/1000 Dual Port Optical Gigabit Adapter applicate to Gigabit Ethernet,with excellent noise immunity, and also support long-distance fiber connectivity. All the PRO Network Connection support Femrice PRO intelligent installation, so that simplify installation and management processes, simplify the installation process of the card, With this program, you can also by simple click, configure and manage all network connections in order to meet your connectivity needs.
Using Environment:
servers, industrial machines, security equipment, traffic control, computer room, network expansion and so on.
Partners and end-users:
China Telecom, China Netcom, China Railcom, China Unicom, Space Unisign servers, Bank of China, Founder Technology, Dawning servers, Lenovo servers, IBM servers, HP servers, Dell servers, the Great Wall Broadband, Beijing Radio and Television General Institute, , World Chinese Youth Federation, Tsinghua Huambo, China Urban Planning and Design, Gehua, The People's Republic of China Ministry of Railways, China City Planning Information Network, etc.
Warranty:
Femrice Ethernet optical gigabit adaptersand fiber optic modules, a three-months replacement and a three-year global warranty.
