Product Description

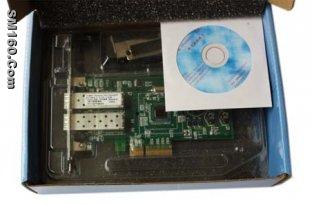

Ethernet Dual-port Optical Gigabit Adapter Card 10002EF-SM-40KM
FemriceEthernet Dual PortOptical GigabitAdapter 10002EF
Femrice Ethernet server adapter has been tested for compatibility, available from 10/100 Mbps to 1000Mbps and 10 Gbps, optical fiber or copper, fiber optic module can be adaptive plug replacement, extensive using PCI Express * and single to quad ports configurations. New features include the adoption for Microsoft * Device Manager and other tools PROSet utility to achieve a more complete installation and management functions.
Femrice Gigabit EF Dual Port Optical GigabitAdapter
Products Advantages:
Femrice own brand product Optical Gigabit Adapter 10002EF series is used for optical network in the Gigabit Ethernet network connectivity.
The designe of Ethernet Dual-Port Optical Gigabit Adapter 10002EF series card demonstrate excellent performance in a multi-processor system.
It realize applicating two Ethernet Optical Gigabit Adapter connections in a single PCI Express * slots, The latest high-performance and self-configuring optical Ethernet Optical Gigabit Adapter within dual SFP slots which can applicated two SFP tranceivers ,single mode or multi-mode,short distance or long distance ,any wavelength which you need.
you can choose SFP tranceivers and changeable and pluggable. Support self-configuring ,full and half- duplex.
Provide high quality ,reasonable price well service and guaranteed 100%.
Products Technology Paraments Description
The Femrice Gigabit EF Dual-Port Ethernet Optical Gigabit Adapter are Intel's third generation of PCIe GbE Ethernet Optical Gigabit Adapter. Built with the Intel® 82576 Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization.
Product information
Dual-port Ethernet Optical Gigabit Adapter designed for multi-core processors and optimized for virtualization
- High-performing, 10/100/1000 Ethernet connection
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
- Scalable PCI Express* interface provides dedicated I/O bandwidth for I/O-intensive networking applications
- Optimized for virtualized environments
- Flexibility with iSCSI Boot and choice of dual- port and quad-port Ethernet Optical Gigabit Adapters
Designed for Multi-Core Processors
Optimized for Virtualization
Virtual Machine Device Queues (VMDq)
End-to-endWired Security
On-Board Management Features
Specifications and Sarameters
The Basic Specifications
|
Model
|
10002EF-SM-40KM
|
|
Product Type
|
Ethernet Optical Gigabit Adapter
|
|
Controller chipset
|
Intel ® 82576 processor chip Gigabit Ethernet controller: design for the next generation of Gigabit performance and multi-core processor, industry-leading and high energy-saving controller
|
|
bus type
|
PCI Express, compatible with x4, x8 and x16 PCI-E slot
|
|
Whole Duplex
|
Compatible whole duplex and half duplex
|
|
Network interface type
|
SFPSlot*2(1000BASE-SX,1000BASE-LX,1000BASE-ZX),LC fiber
|
|
Transmission speed Mbps
|
1000
|
|
network interface type
|
LC fiber
|
|
transfer rate Mbps
|
1000
|
|
transmission medium type
|
LC fiber, Shielded Cable is required for EMI compliance MMF 62.5/50 um
|
|
networking standard
|
IEEE802.3 (1000BASE-SX/LX/ZX)
|
|
Date Rate/Distance
|
1.25G/40km
|
|
Fiber Module
|
FS-1310-1400
|
|
Long-range awaken function
|
support
|
|
full duplex
|
compatible full-duplex and half duplex
|
|
Working Temperature
|
0° C to 55° C (32° F to 131° F)
|
|
Storage Temperature
|
-40° C to 70° C (-40° F to 158° F)
|
|
Storage humidity
|
90% non-condensing relative humidity at 35° C
|
|
typical power
|
2.2W
|
|
Size
|
16.74 cm(6.59 in)* 6.81 cm (2.681 in)
|
|
Bracket
|
High bracket 12.00 cm (4.725 in) ，small bracket 7.92 cm (3.12 in)
|
|
LED lamp
|
link (long light) and activity (blink) 2 led
|
Technology and Support
|
unique features
|
support PCIe hot-plug,support Plug-Play standard specification
supports iSCSI Remote Boot
I / OAT technology, fast -data, receiver scaling
multi-core CPU load balancing, virtualization optimization
end-to-end wired security, on-board management capabilities
designed for Microsoft Device Manager program
|
|
compatible with operating system
|
Windows* Vista* SP1 ，Windows Server* 2003 SP2，Windows* Unified Storage Solution 2003，Windows Server* 2008，Linux* Stable Kernel version 2.6，Linux* RHEL 4 ，Linux* RHEL 5，Linux* SLES 9，Linux* SLES 10，FreeBSD* 7.0，UEFI* 1.1 ，VMware ESX* 3.x
|
Using Environment:
servers, industrial machines, security equipment, traffic control, computer room, network expansion and so on.
Partners and end-users:
China Telecom, China Netcom, China Railcom, China Unicom, Space Unisign servers, Bank of China, Founder Technology, Dawning servers, Lenovo servers, IBM servers, HP servers, Dell servers, the Great Wall Broadband, Beijing Radio and Television General Institute, , World Chinese Youth Federation, Tsinghua Huambo, China Urban Planning and Design, Gehua, The People's Republic of China Ministry of Railways, China City Planning Information Network, etc.
Warranty:
Femrice Ethernet Optical Gigabit Adapters and fiber optic modules, a three-months replacement and a three-year global warranty.
