Product Description

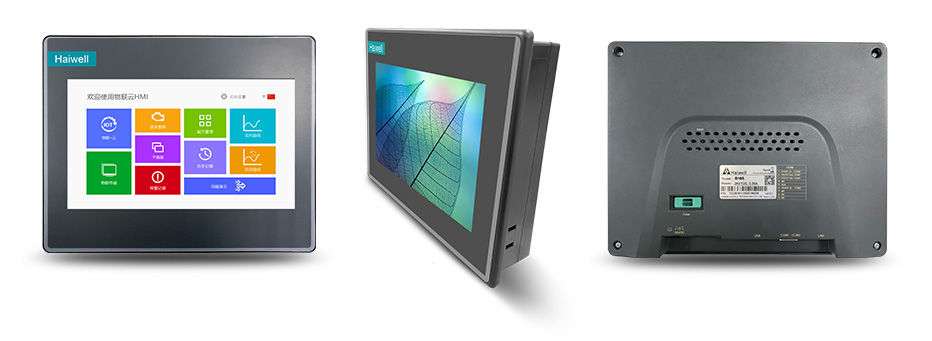

C7s-g touch screen technical parameters:
Model: c7s-g
Display 7 inches
Resolution 800 * 480
Brightness 300
Backlight LED
Touch type resistive
Backlight life 20000 hours
Flash 4GB
Memory 512MB
SIM card supports 4G network
Ethernet port 10/100 Base-T
serial interface RS485/RS232
USB HOST USB2.0 x 2
Print port Serial port / USB printing
Power Supply Input power 24±20%VDC
Overall dimension (wxhxd) 200x146x37mm
Opening size (WXH) 193x138mm
weight 0.8kg
Product features:
● true color TFT liquid crystal display, LED backlight, real picture and rich content
● high performance processor, 4GB Flash + 512M DDR3
● directly use Haiwell cloud SCADA cloud configuration software for programming management
● program download through serial port / USB flash disk / SD card / Ethernet / Sea Cloud
● intelligent management, support cloud / mobile access control, and strong operability
● innovative a / B key security mechanism, multi language automatic translation and project overview interface
● multi screen networking. Innovative network networking mode, easy, fast, convenient and practical
● integrated Haiwell cloud service and built-in Haiwell cloud engine
● rich interfaces. Standard RJ45 interface, 2 serial ports (232 / 422 / 485), 2 USB interfaces and SD card. Optional WiFi

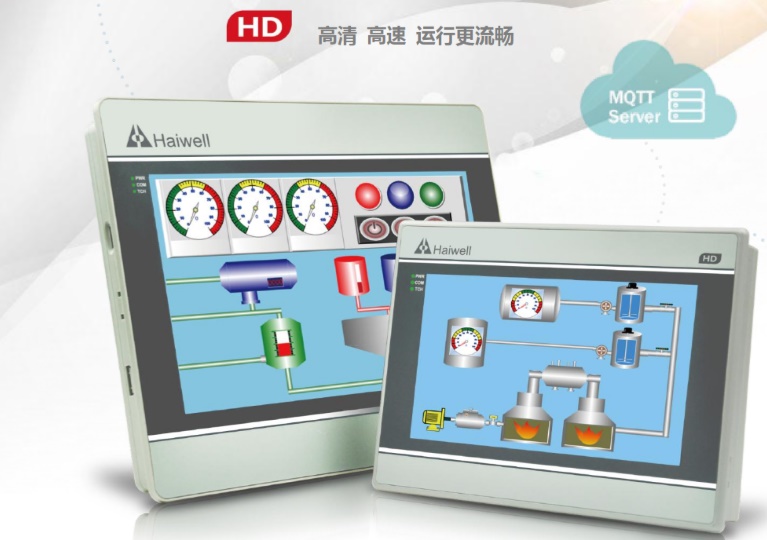

● support mqtt protocol, support access to database server, easily realize data collection and reporting, and connect with ERP / MES and other systems.
● support edge calculation. Edge computing is realized through the built-in script engine, function operation and interaction with device data in the terminal
● support a variety of third-party protocols. Built in a variety of industrial equipment drivers to support the current mainstream PLC, frequency converter and instrument
● support cloud transparent transmission. Remote programming, downloading, firmware upgrading, diagnosis, monitoring and debugging of PLC program to detect abnormal conditions on site at any time
usage method:
Connect 24V DC power supply

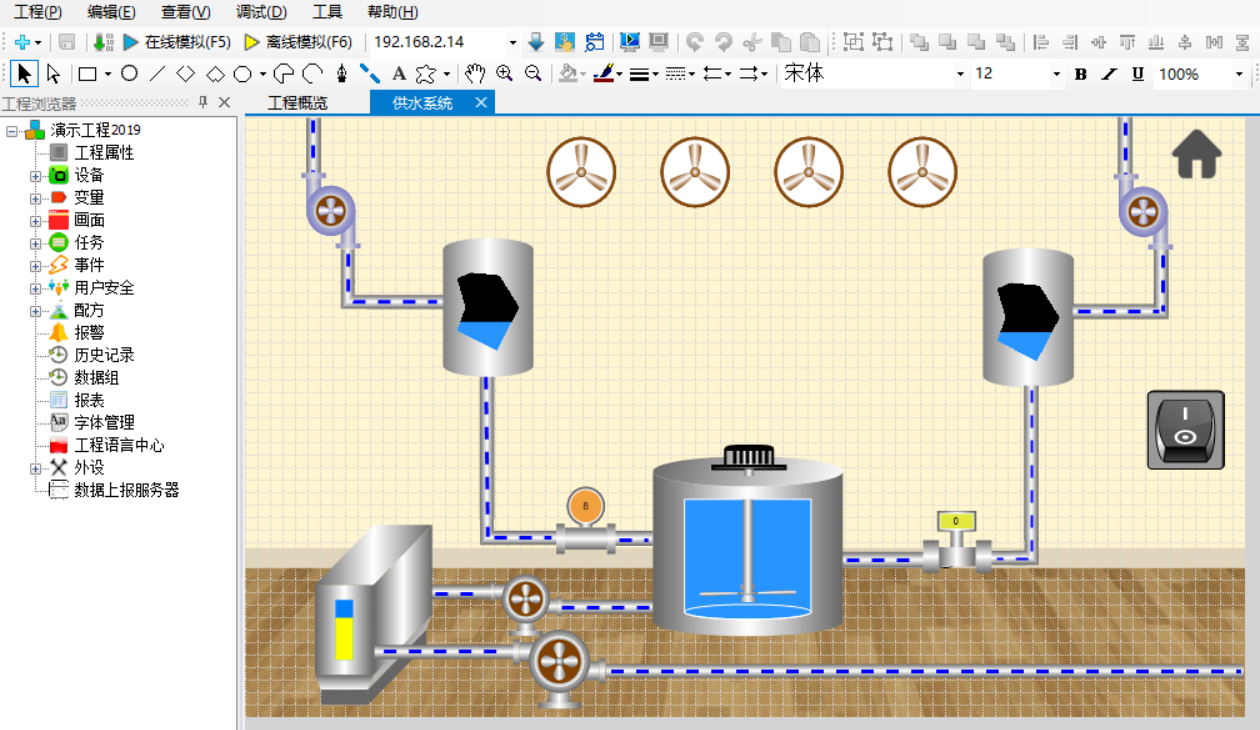

Computer installation programming software Haiwell cloud SCADA Designer
Write screen program files (parameter setting, fault alarm, IO status, etc.)
Download to touch screen
Connect PLC controller through serial port or network port
Debugging and modifying program
Vietnam Singapore Malaysia Cambodia India South Korea Philippines Pakistan Thailand Kyrgyzstan Tajikistan
Mongolia Kazakhstan
Australia New Zealand
Turkey Italy Britain Germany France Netherlands Norway Sweden Croatia Portugal Spain Ukraine Russia
Lithuania Finland
Brazil Argentina Chile Peru Uruguay
Costa Rica Mexico
USA Canada
Sales of Haiwell HMI PLC in South Africa, Egypt, Cameroon and other countries and regions
Model: c7s-g
Display 7 inches
Resolution 800 * 480
Brightness 300
Backlight LED
Touch type resistive
Backlight life 20000 hours
Flash 4GB
Memory 512MB
SIM card supports 4G network
Ethernet port 10/100 Base-T
serial interface RS485/RS232
USB HOST USB2.0 x 2
Print port Serial port / USB printing
Power Supply Input power 24±20%VDC
Overall dimension (wxhxd) 200x146x37mm
Opening size (WXH) 193x138mm
weight 0.8kg
Product features:
● true color TFT liquid crystal display, LED backlight, real picture and rich content
● high performance processor, 4GB Flash + 512M DDR3
● directly use Haiwell cloud SCADA cloud configuration software for programming management
● program download through serial port / USB flash disk / SD card / Ethernet / Sea Cloud
● intelligent management, support cloud / mobile access control, and strong operability
● innovative a / B key security mechanism, multi language automatic translation and project overview interface
● multi screen networking. Innovative network networking mode, easy, fast, convenient and practical
● integrated Haiwell cloud service and built-in Haiwell cloud engine
● rich interfaces. Standard RJ45 interface, 2 serial ports (232 / 422 / 485), 2 USB interfaces and SD card. Optional WiFi
● support mqtt protocol, support access to database server, easily realize data collection and reporting, and connect with ERP / MES and other systems.
● support edge calculation. Edge computing is realized through the built-in script engine, function operation and interaction with device data in the terminal
● support a variety of third-party protocols. Built in a variety of industrial equipment drivers to support the current mainstream PLC, frequency converter and instrument
● support cloud transparent transmission. Remote programming, downloading, firmware upgrading, diagnosis, monitoring and debugging of PLC program to detect abnormal conditions on site at any time
usage method:
Connect 24V DC power supply
Computer installation programming software Haiwell cloud SCADA Designer
Write screen program files (parameter setting, fault alarm, IO status, etc.)
Download to touch screen
Connect PLC controller through serial port or network port
Debugging and modifying program
Vietnam Singapore Malaysia Cambodia India South Korea Philippines Pakistan Thailand Kyrgyzstan Tajikistan
Mongolia Kazakhstan
Australia New Zealand
Turkey Italy Britain Germany France Netherlands Norway Sweden Croatia Portugal Spain Ukraine Russia
Lithuania Finland
Brazil Argentina Chile Peru Uruguay
Costa Rica Mexico
USA Canada
Sales of Haiwell HMI PLC in South Africa, Egypt, Cameroon and other countries and regions
