C10s-g IOT man-machine interface and programming
- Price
- US$ 280.00 / Piece(s)
- Min. Order
- 1 Piece(s)
- Stock
- 0
- Port
- Location:
- Shandong,China
- Main Category:
- Electrical and Lighting
- Main Products:
- "PLC", "HMI", "Inverter"
Contact Info.
Product Description

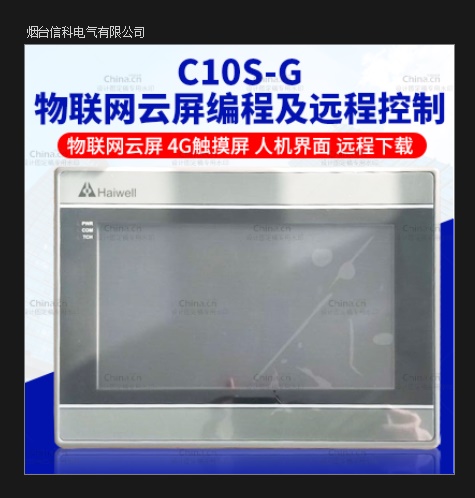

Model: C10S-G
C10s-g HMI Technical Parameters:
Display 10.1 inches
Resolution 1024 * 600
Brightness 350
Backlight LED
Touch type resistive
Backlight life 20000 hours
Flash 4GB
Memory 512MB
SIM card supports 4G network
Ethernet port 10/100 Base-T
serial interface RS485/RS232
USB HOST USB2.0 x 2
Print port Serial port / USB printing
Power Supply Input power 24±20%VDC
Overall dimension (wxhxd) 270x212x35mm
Opening size (WXH) 260x202mm
weight 1.3kg
Product features:

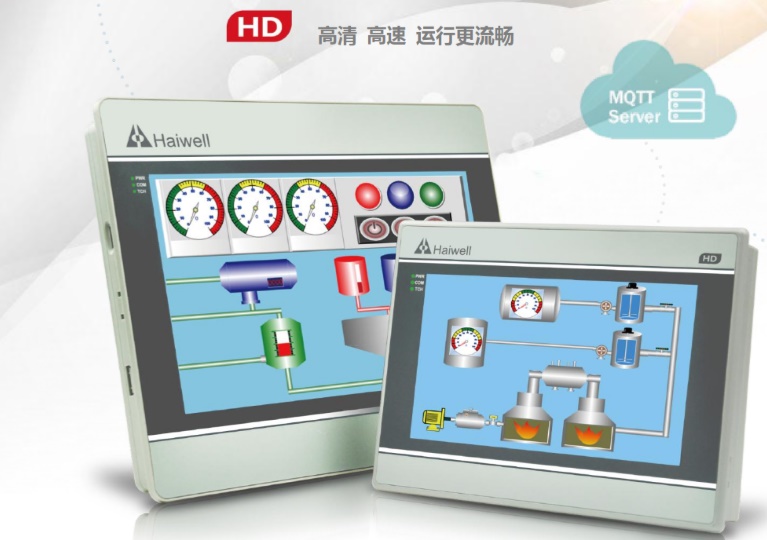

● true color TFT liquid crystal display, LED backlight, real picture and rich content
● high performance processor, 4GB Flash + 512M DDR3
● directly use Haiwell cloud SCADA cloud configuration software for programming management
● program download through serial port / USB flash disk / SD card / Ethernet / Sea Cloud
● intelligent management, support cloud / mobile access control, and strong operability
● innovative a / B key security mechanism, multi language automatic translation and project overview interface
● multi screen networking. Innovative network networking mode, easy, fast, convenient and practical
● integrated Haiwell cloud service and built-in Haiwell cloud engine
● rich interfaces. Standard RJ45 interface, 2 serial ports (232 / 422 / 485), 2 USB interfaces and SD card. Optional WiFi
● support mqtt protocol, support access to database server, easily realize data collection and reporting, and connect with ERP / MES and other systems.
● support edge calculation. Edge computing is realized through the built-in script engine, function operation and interaction with device data in the terminal
● support a variety of third-party protocols. Built in a variety of industrial equipment drivers to support the current mainstream PLC, frequency converter and instrument
● support cloud transparent transmission. Remote programming, downloading, firmware upgrading, diagnosis, monitoring and debugging of PLC program to detect abnormal conditions on site at any time
usage method:
Connect 24V DC power supply

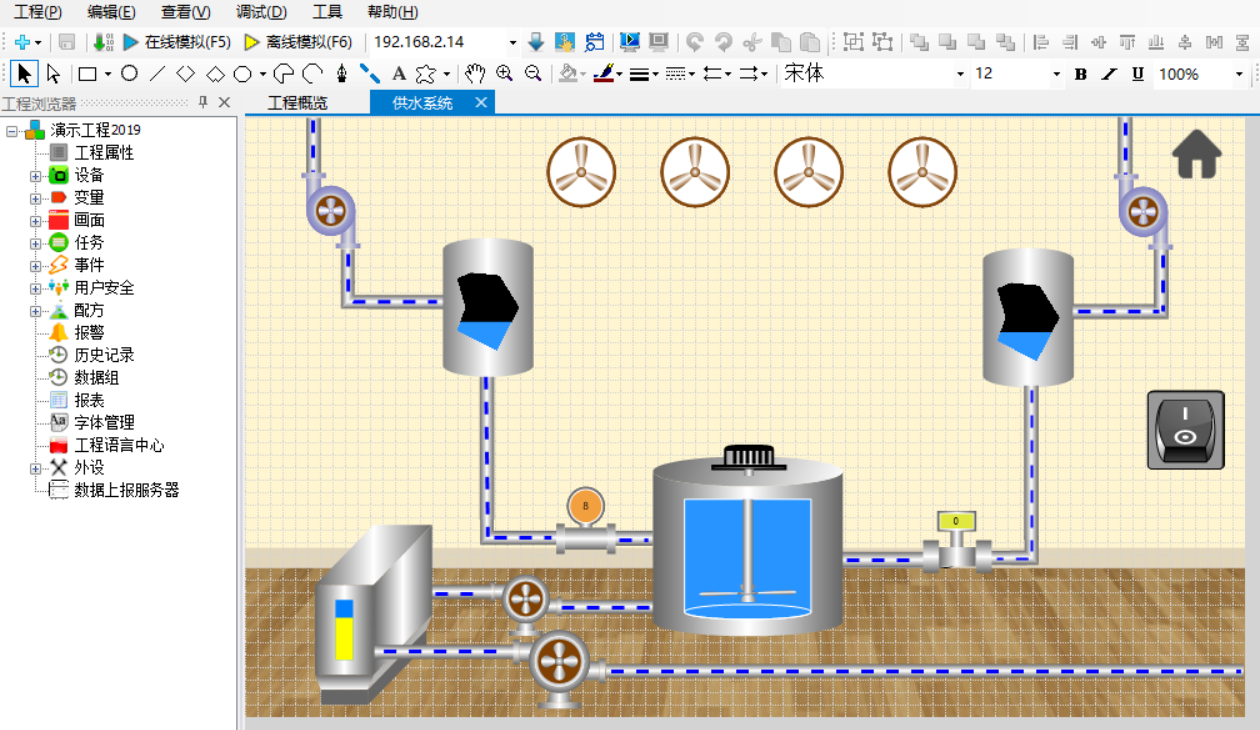

Computer installation programming software Haiwell cloud SCADA Designer
Write screen program files (parameter setting, fault alarm, IO status, etc.)
Download to touch screen
Connect PLC controller through serial port or network port
Debugging and modifying program
Vietnam Singapore Malaysia Cambodia India South Korea Philippines Pakistan Thailand Kyrgyzstan Tajikistan
Mongolia Kazakhstan
Australia New Zealand
Turkey Italy Britain Germany France Netherlands Norway Sweden Croatia Portugal Spain Ukraine Russia
Lithuania Finland
Brazil Argentina Chile Peru Uruguay
Costa Rica Mexico
USA Canada
Sales of Haiwell HMI PLC in South Africa, Egypt, Cameroon and other countries and regions
C10s-g HMI Technical Parameters:
Display 10.1 inches
Resolution 1024 * 600
Brightness 350
Backlight LED
Touch type resistive
Backlight life 20000 hours
Flash 4GB
Memory 512MB
SIM card supports 4G network
Ethernet port 10/100 Base-T
serial interface RS485/RS232
USB HOST USB2.0 x 2
Print port Serial port / USB printing
Power Supply Input power 24±20%VDC
Overall dimension (wxhxd) 270x212x35mm
Opening size (WXH) 260x202mm
weight 1.3kg
Product features:
● true color TFT liquid crystal display, LED backlight, real picture and rich content
● high performance processor, 4GB Flash + 512M DDR3
● directly use Haiwell cloud SCADA cloud configuration software for programming management
● program download through serial port / USB flash disk / SD card / Ethernet / Sea Cloud
● intelligent management, support cloud / mobile access control, and strong operability
● innovative a / B key security mechanism, multi language automatic translation and project overview interface
● multi screen networking. Innovative network networking mode, easy, fast, convenient and practical
● integrated Haiwell cloud service and built-in Haiwell cloud engine
● rich interfaces. Standard RJ45 interface, 2 serial ports (232 / 422 / 485), 2 USB interfaces and SD card. Optional WiFi
● support mqtt protocol, support access to database server, easily realize data collection and reporting, and connect with ERP / MES and other systems.
● support edge calculation. Edge computing is realized through the built-in script engine, function operation and interaction with device data in the terminal
● support a variety of third-party protocols. Built in a variety of industrial equipment drivers to support the current mainstream PLC, frequency converter and instrument
● support cloud transparent transmission. Remote programming, downloading, firmware upgrading, diagnosis, monitoring and debugging of PLC program to detect abnormal conditions on site at any time
usage method:
Connect 24V DC power supply
Computer installation programming software Haiwell cloud SCADA Designer
Write screen program files (parameter setting, fault alarm, IO status, etc.)
Download to touch screen
Connect PLC controller through serial port or network port
Debugging and modifying program
Vietnam Singapore Malaysia Cambodia India South Korea Philippines Pakistan Thailand Kyrgyzstan Tajikistan
Mongolia Kazakhstan
Australia New Zealand
Turkey Italy Britain Germany France Netherlands Norway Sweden Croatia Portugal Spain Ukraine Russia
Lithuania Finland
Brazil Argentina Chile Peru Uruguay
Costa Rica Mexico
USA Canada
Sales of Haiwell HMI PLC in South Africa, Egypt, Cameroon and other countries and regions
Yantai Xinke Electric Co., Ltd
Company Introduction
Yantai Xinke electric specializes in industrial control technical services, equipment transformation, automation engineering, technical training and industrial automation product sales.
Installation and manufacture of PLC control cabinet, electrical cabinet and distribution cabinet.
PLC programming, debugging, maintenance and other services
Touch screen maintenance, electrical cabinet maintenance, control cabinet maintenance, equipment electrical maintenance
Professional agent sales of domestic and foreign well-known brands of touch screen, programmable controller, frequency converter and servo system and other industrial automation related products.
Repair, maintenance and commissioning of automation equipment; Production line transformation and optimization
Various PLC, touch screen programs and data backup
Mobile phone monitoring operation PLC
PLC, data acquisition, intelligent gateway, PLC, DCS gateway
PLC data access enterprise MES system
Establishment of PLC cloud platform
One click private cloud platform
Intelligent operation and maintenance intelligent production
PLC remote download, remote monitoring, SMS alarm, etc
Various PLC, touch screen, text display programming cables and programming software
PLC, touch screen, frequency converter, servo motor and other automation technologies
Haiwell plc hmi Internet of things box
