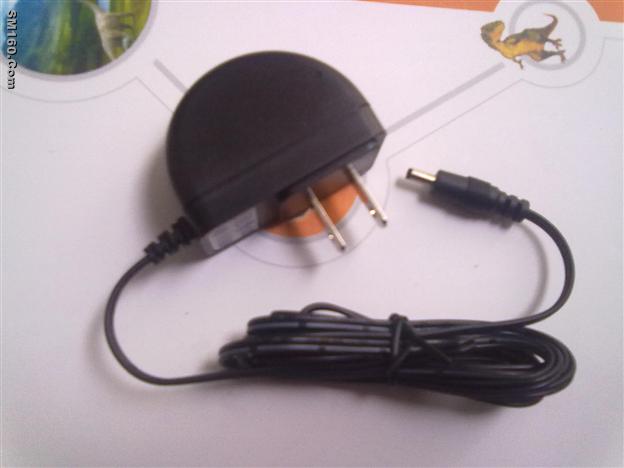

5V1000mA Switching Power Adapter

Price: Negotiable / Piece(s)
Min. Order: 1 Piece(s)
Stock: 0
Port

Send Inquiry Favorite

KUANTEN LIMITED

Location:: Guangdong,China
Main Category:: Computer and Electronics
Main Products:: Switching power supply,Switching power adapter,power charge

Contact Info.

Product Description

PRODUCT CHARACTERISTICS

●Complete, inexpensive,
●self-contained
●regulated power source .Light ,streamline ,and compact design.
●Super power supply, IC control
circuit guarantees Stable ,long-lasting output
required by any Electronics.
●Extra safe design ,all with their respective
safety approvals .
●Ultra low standby power consumption,
Energy standard:CEC,EnergyStar an Blue angel requirements.
●On-line LED power indicator.

●Constant voltage/Constant current
●High efficiency circuitry that generates
little heat and does not need heat sinking.
●Built in EMI filter.

PRODUCT APPLICATIONS

●Bluetooth.
●Digital cameras.
●Wireless communication accessories.
●PDA.
●Household applications.
●MP3,MP4 player.
●Cell lithium ion batteriesies<
/td>

PROTECTION

●Short circuit protection.
●Over voltage protection.
●Over current protection.
●Thermal shutdown capability.

RELIABILITY

●Burn-in: 100% full load ,40±5℃,4Hrs min.
●Leakage Current: 0.25mA max. at 264Vac.
●Withstanding Voltage:(between primary & secondary)3000Vac 1 minute 10mA max.
●MTBF: meet MIL-HDBK-217F over 100K hours,full load,25℃

ENVIRONMENTAL

●TEMPERATURE
●Operation: 0-40 oC
●Non-opertion:-25 to +85 oC
●HUMIDITY
●Operation:10 TO 90%

SAFETY APPROVALS

●UL60950-1 1st edition
●CAN/CSA C22.2 NO.60950-1-03, 1st edition,2003-11
●EN60950-1/A11-2004
●CE(Low Voltage Directive)
●AS/NZS 60950.1:2003,A1
●PSE J60950(H14)
●GB4943-2001

EMISSIONS

●FCC Part15 class B
●EN55022 class B
●AS/NZS3548,AS/NZS4251.1 class B
●VCCI class B
●CNS13438 class B
●GB9254-1998/GB17625.1-2003
●CISPR22 class B

IMMUNITY

●EN55024/A1:2001
●Electrostatic discharge:61000-4-2
●Radiated electromagnetic fields:61000-4-3
●Fast transients(burst):61000-4-4
●Surge transients:61000-4-5
●Conducted disturbance:61000-4-6
●Voltage dips,interruptions & variations:61000-4-11

INPUT AND OUTPUT CHARACTERISTICS	DC OUTPUT VOLTAGE	DC OUTPUT CURRENT	OUTPUT VOLTAGE PRECISION	RIPPLE & NOISES	REGULATION		MAXIMAL OUTPUT POWER
INPUT AND OUTPUT CHARACTERISTICS	DC OUTPUT VOLTAGE	DC OUTPUT CURRENT	OUTPUT VOLTAGE PRECISION	RIPPLE & NOISES	LINE	LOAD	MAXIMAL OUTPUT POWER
Ac input voltage rating: 100 to 240vac Ac input voltage range: 90 to 264vac Input frequency: 50/60hz Ac input current 0.2A(RMS)max.@120Vac Inrush current <30A for 120Vac max.load <60A for 240Vac max.load (Cold start@ambient 25oC) Transmit efficiency ≧60% average efficiency.	6.1-12V	0.01-0.98A	5%	250mV	±2%	±5%	6W
	5.0-6.0V	0.01-1.20A	5%	250mV	±2%	±5%	6W
	3.0-4.9V	0.01-1.00A	5%	250mV	±2%	±5%	4.9W
	REMARK: (ripple and noise) 1. Measurements shall be made with an oscilloscope with 20MHz bandwidth. 2. Outputs shall be bypassed at the connector with a 0.1u F ceramic disk capacitor and a 10u F electrolytic capacitor to simulate system loading.

Safety Mark	Pcs per Exp.Ctn	Gross Weight(kg)	NET Weight(kg)	Measurement (mm)	CBM	Containner	Ctn containner	Pcs per Containner	Gross Weight(ton)
CCC UL PSE	100	10	8	470270185	0.023	20FT	1260	126000	12.6
GS	100	12	10	470345185	0.029	20FT	1020	102000	12.2
SAA UK	100	11	9	540320185	0.032	20FT	864	86400	9.5
