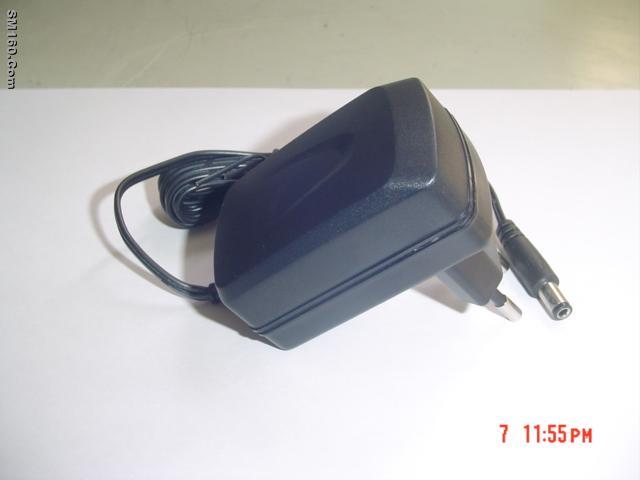

12V1000mA Switching Power Adapter

Negotiable / Piece(s)

Min. Order 1 Piece(s)

KUANTEN LIMITED

12V1000mA Switching Power Adapter

Price: Negotiable / Piece(s)
Min. Order: 1 Piece(s)
Stock: 0
Port

Send Inquiry Favorite

KUANTEN LIMITED

Location:: Guangdong,China
Main Category:: Computer and Electronics
Main Products:: Switching power supply,Switching power adapter,power charge

Contact Info.

Product Description

PRODUCT CHARACTERISTICS

●Complete, inexpensive,
●self-contained
●regulated power source .Light ,streamline ,and compact design.
●Super power supply, IC control
circuit guarantees Stable ,long-lasting output
required by any Electronics.
●Extra safe design ,all with their respective
safety approvals .
●Ultra low standby power consumption,
Energy standard:CEC,EnergyStar 2.0 an Blue angel requirements.
●Constant voltage/Constant current
●High efficiency circuitry that generates
little heat and does not need heat sinking.

●Built in EMI filter.

PRODUCT APPLICATIONS

●MODEM

●Digital cameras.
●Wireless communication accessories.
●PDA.
●Household applications.
●MP3,MP4 player.
●Cell lithium ion batteriesies<
/td>

PROTECTION

●Short circuit protection.
●Over output voltage protection.
●Over current protection.

●Over input voltage protection.
●Thermal shutdown capability.

RELIABILITY

●Burn-in: 100% full load ,40±5℃,4Hrs min.
●Leakage Current: 0.25mA max. at 264Vac.
●Withstanding Voltage:(between primary & secondary)3000Vac 1 minute 10mA max.
●MTBF: meet MIL-HDBK-217F over 100K hours,full load,25℃

ENVIRONMENTAL

●TEMPERATURE
●Operation: 0-40 oC
●Non-opertion:-25 to +85 oC
●HUMIDITY
●Operation:10 TO 90%

SAFETY APPROVALS

●UL60950-1 1st or UL60065 edition
●CAN/CSA C22.2 NO.60950-1,60065
●EN60950-1/A11-2004,EN60065
●CE(Low Voltage Directive)
●AS/NZS 60950.1:2003,A1,60065
●PSE J60950(H14),60065
●GB4943-2001

EMISSIONS

●FCC Part15 class B
●EN55022 class B
●AS/NZS3548,AS/NZS4251.1 class B
●VCCI class B
●CNS13438 class B
●GB9254-1998/GB17625.1-2003
●CISPR22 class B

IMMUNITY

●EN55024/A1:2001
●Electrostatic discharge:61000-4-2
●Radiated electromagnetic fields:61000-4-3
●Fast transients(burst):61000-4-4
●Surge transients:61000-4-5
●Conducted disturbance:61000-4-6
●Voltage dips,interruptions & variations:61000-4-11

INPUT AND OUTPUT CHARACTERISTICS	DC OUTPUT VOLTAGE	DC OUTPUT CURRENT	OUTPUT VOLTAGE PRECISION	RIPPLE & NOISES	REGULATION		MAXIMAL OUTPUT POWER
INPUT AND OUTPUT CHARACTERISTICS	DC OUTPUT VOLTAGE	DC OUTPUT CURRENT	OUTPUT VOLTAGE PRECISION	RIPPLE & NOISES	LINE	LOAD	MAXIMAL OUTPUT POWER
Ac input voltage rating: 100 to 240vac Ac input voltage range: 90 to 264vac Input frequency: 50/60hz Ac input current 0.4A(RMS)max.@100Vac Inrush current <30A for 120Vac max.load <60A for 240Vac max.load (Cold start@ambient 25oC) Transmit efficiency ≧65% average efficiency.	9.0-24V	0.01-1.33A	5%	150mV	±1%	±5%	12W
	7.5-8.9V	0.01-2.0A	5%	150mV	±1%	±5%	11W
	5.6-7.4V	0.01-1.96A	5%	100mV	±1%	±5%	11W
	3.3-5.5V	0.01-2.0A	5%	100mV	±1%	±5%	11W
	REMARK: (ripple and noise) 1. Measurements shall be made with an oscilloscope with 20MHz bandwidth. 2. Outputs shall be bypassed at the connector with a 0.1u F ceramic disk capacitor and a 10u F electrolytic capacitor to simulate system loading.
