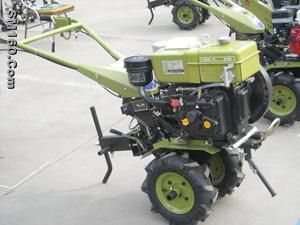

PR170FS rotovator works in both pulling and driving type. It is mainly suitable for using in narrow land, terraced fields in mountain area, vegetable garden, orchard and greenhouse. It features compact construction, easy and flexible handling, light weight, reliable operation, convenient maintenance as well as good trafficability.

Type: pull and drive

Over all dimension (mm) (LxWXH) (1600x570x900)

Ground clearence: 230(mm)

Wheel tread: 350-600(mm)

Net mass: 80(KG) only for chassis

Match engine: 170F or 175N diesel engine, 168 or 173 gasoline engine.

Power  2.94(KW) 4（HP）—5.15（KW）7（HP）

Main drive: V-belt (1270B)

Clutch type: belt tension wheel

Transmission: (1+1)x2 compound type with spur gears

Rotary tilling width (mm)400-900

Rotary tilling depth (mm)50-300

Transmission oil capacity: 5(L)

Tyre specification: 4.00-7

Rated drawbar pull: 600N

PTO speed (r/min) 1511

Trailer rated load: 300 (KG)

Advantage

1, small size, light weight,it is horse power is strong and useful.

2,lighted clutch,it also can work as over load clutch,it can protect over load and use safely.
