ozone generrtor
  air disinfection
air deodorization

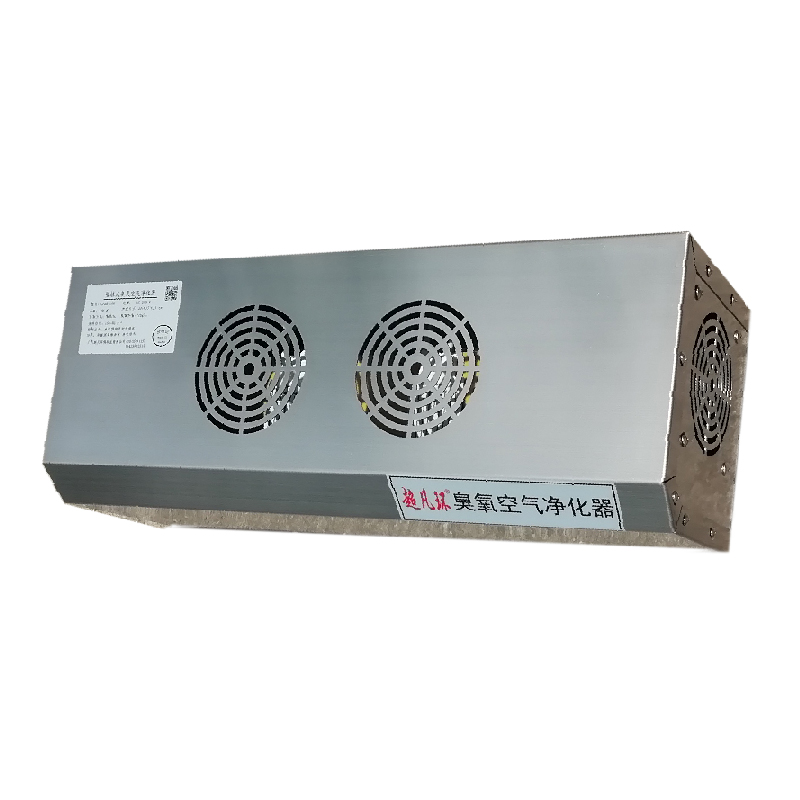

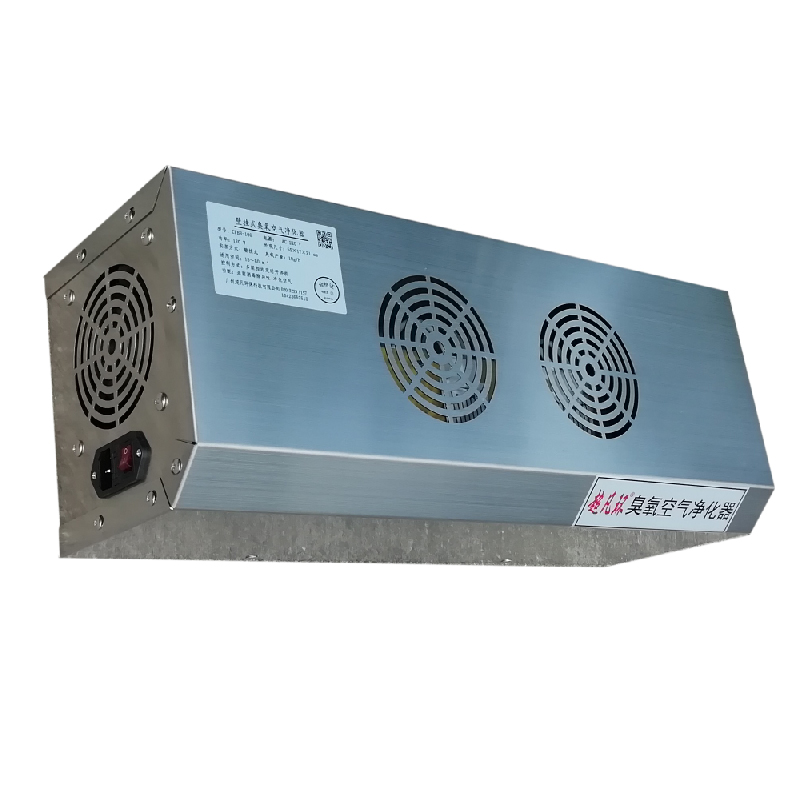

Chaofanhuan brand ozone air purifier
Brief  introduction

1. The principle of deodorization and disinfection of the Chaofanhuan brand ozone air purifier: the machine produces ozone gas when it is working, and uses the characteristics of ozone gas to achieve the purpose of deodorization and disinfection.
1. The main components of the odor in garbage rooms, public toilets, farms, pet rooms, zoos and other places are ammonia and hydrogen sulfide gas. At room temperature, ozone can react with these two to decompose harmful odorous gases and form harmless odorless gases and water, rather than masking odors. At the same time, ozone gas is generally reduced to oxygen in about 60 minutes, and there will be no secondary pollution. The ozone gas odor is like a faint smell around a UV lamp.
Attached: Chemical equation of ozone reaction with ammonia and hydrogen sulfide gas
O3+H2S=S+O2+H2O      or  O3+3H2S=3S+3H2O
7O3+6NH3=6NO2+9H2O  or  5O3+6NH3=6NO+9H2O
2. Ozone gas can be sterilized and disinfected has been widely used, ozone gas has strong oxidation, catalytic and other effects, viruses and bacteria in ozone gas due to the action of a variety of free radicals, so that protein dissociation and denaturation, nucleic acid and enzyme activity is reduced, so as to have disinfection and sterilization effect
2. How to use the Chaofanhuan brand ozone air purifier
Hang at a high position of more than 1.5 meters, set the on/off time (20 on/off periods can be set every day), and the machine releases ozone gas to deodorize and disinfect the space
3. The main advantages of the Chaofanhuan brand ozone air purifier
 Deodorization and disinfection only require electricity, no consumables
 This product has high efficiency and low power consumption, and only uses 1 kWh of electricity for 10 hours of continuous work
 Automatic power on and off multiple times a day, no need for special management
 Indoor deodorization does not require ventilation, deodorization is thorough, disinfection without residue
 The machine shell and all appearance accessories are made of stainless steel, which is fireproof, moisture-proof, never rusty, and beautiful
 The internal components of the machine have been stable and reliable after years of research and development by the company, with a two-year warranty and lifelong maintenance

4、 The main size of the wall mounted type of the Chaofanhuan brand ozone air purifier
Dimensions  size 55cm x21cm x17cm
Package  size  68cm x28cm x23cm

5. The main technical parameters of the Chaofanhuan ozone air purifier




Model Voltage
(V) Power rate
(W) Ozone production
(g/h) Applicable area
(m2) Weight
(Kg)
CFBB-7G 220 100 7 10~60 7
CFBB-10G 220 120 10 15~80 7.5
CFBB-15G 220 150 15 20~120 8.5
CFBB-20G 220 180 20 30~200 9.5
CFBB-25G 220 210 25 40~250 10

Note: The height of the applicable area in the table is 3.5 meters, and the applicable area is for reference only, and it will be appropriately increased or decreased according to the actual situation

6. Sterilization and deodorization test results of Chaofanhuan ozone air purifier

    This product has been authoritatively tested by Guangzhou Industrial Microbiology Testing Center of South China Air Purification Product Testing Center: the sterilization rate of E. coli is greater than 99.99%, and the extinction rate of natural bacteria is greater than 96%. The removal rate of hydrogen sulfide and ammonia is more than 85%.



Guangzhou Chaofan Environmental Protection Technology Co., Ltd. Technical Department
