Product Description

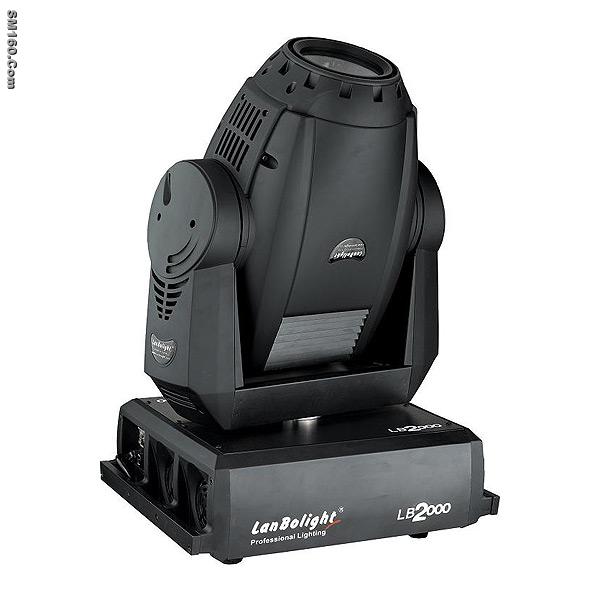

LB-2000MH18/16
Technical Parameter:
Lamp: MSI 1200 W/S
Ballast: Electromagnetism
Power Supply: AC230V/50Hz 1500W
Control System: USITT DMX512
Channel: 16/18CH
light Size: 550x400x750mm
Weight: 50kg
1. Elegant Plastic casing design, 18channels DMX-512 luminaire.
2.540 degree in Pans come with 8 or 16 bit resolution, 270 degree in Tilt come with 8 or 16 bit resolution. The Pans and Tilt moving by double strongly steppingmotors.
3.2 Color wheels each one has 7dichroic colors plus white. Semi-colors effect, Rainbow-effect in both directions
4. Putting two color wheels together to get up to 128 color effect.
5. Additionally correction-filters to adjust color temperature 3, 200 K-6, 000 K.
6.2 Gobo wheels each one has four replaceable gobo patterns plus one.
7. One is Fixed Gobo Wheel and the other is Rotating Gobo Wheel. Putting two gobo wheels together to get up to more than 100gobos effect.
8. Rotating gobos rotating both directions with variable speed. 4 metal gobos patterns, 2 glass gobos patterns, Gobo stream effect.
9. Micro-adjustment of Gobo position. Iris liner adjustment
10. Dimmer and variable shutter strobing, 1-12 flash per second. Frost Effect come into being beam angle of big degree.
11.4 bidirectional rotating prisms with variable speed. 4-facet prism can put another three prism together to create more effect
12. Focal length 13-28 degree fit Linear Zoom lens to display Linear zoom in and zoom out. Auto Focus via DMX channel; Beam patterns via DMX channel; Reset via DMX channel or Manual
13. HELL self-correction system.
14. Digital LED display
15. High voltage protection and over heat protection
16. Color wheel, gobo wheel and prism wheel have the white light recorrection function, when the light is disturbed by outside world or the power supply is broken, the white light recorrection system will avoid blocking the gobo pattern and the color filters
