Product Description
read more: http://www.vrlabatteryblog.com

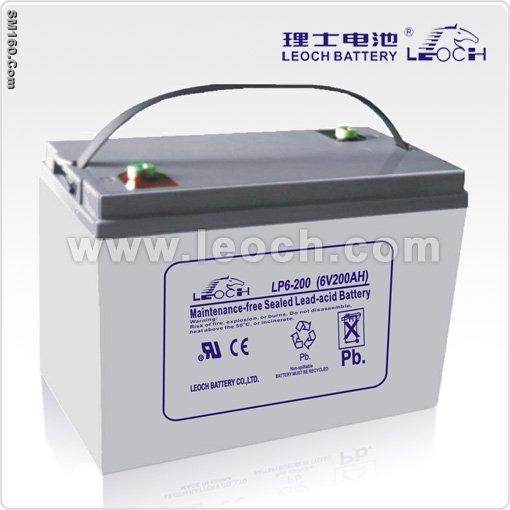

VRLA Battery
Capacity:6V 200AH
Dimension:(L*W*H)322*178*228mm
Approx weight:29.0kg
Certificates:ISO9001:2000,CE,FCC,UL,VDS
VRLA Battery
|
Battery Model
|
LP6-200
|
|
Dimension
|
Length
Width
Container Height
Total Height (with Terminal)
|
306± 3mm (12.05 inches)
168± 2mm (6.61 inches)
222 ±2mm (8.74 inches)
228± 2mm (8.98 inches)
|
|
Approx Weight
|
Approx 28.2 kg (62.2lbs)
|
|
Terminal
|
T11
|
|
Container Material
|
ABS
|
|
Rated Capacity
|
210.0 AH/10.5A
200.0 AH/20.0A
172.0 AH/34.4A
156.0 AH/52.0A
122.0 AH/122.0A
|
(20hr ,1.80V/cell,250C/770F)
(10hr ,1.80V/cell,250C/770F)
(5hr,1.75V/cell,250C/770F)
(3hr,1.75V/cell,250C/770F)
(1hr,1.60V/cell,250C/770F)
|
|
Max. Discharge Current
|
2000A (5s)
|
|
Internal Resistance
|
Approx 1.4mΩ
|
|
Operating Temp.Range
|
Discharge : -15~500C (5 ~1220F)
Charge : 0~400C (32 ~1040F )
Storage : -15~400C (5~1040F)
|
|
Nominal Operating Temp. Range
|
25±30C (77±50F )
|
|
Cycle Use
|
Initial Charging Current less than 60A.Voltage
7.2V~7.5V at 250 C(770 F)Temp. Coefficient -30mV/0C
|
|
Standby Use
|
No limit on Initial Charging Current Voltage
6.75V~6.9V at 250 C(770 F) Temp. Coefficient -20mV/0C
|
|
Capacity affected by
Temperature
|
40 0C (104 0 F) 103%
25 0C ( 77 0F ) 100%
0 0C ( 32 0F ) 86%
|
