Product Description
功能特点
◎可生产普通型,经济型和高档型尿裤产品
◎底膜及无纺布外置机构并设有在线复合功能,可节省原料成本
◎立体护围面料在机复合成型
◎弹性腰围,前腰贴及侧腰贴自动分切
◎橡筋延伸随意可调
◎高分子及棉浆数量可调
◎设备配有原材料自动开卷装置
◎设备配有原材料张力控制装置
◎设备配有原材料自动接料装置
◎设备配有原材料自动剔废装置
◎设备配有原材料自动纠偏装置
◎机器配有全自动包装堆垛设备, 可实现包装自动化, 节省人力
◎机器装有玻璃防护门
◎触摸屏功能:设备开关机,速度显示,产量计数,时间记录,参数设置,报警查询,故障显示,故障查询等(根据不同机型,触摸屏功能设置有差异)
技术参数
◎型号:NK400
◎设计速度:150米/分钟
◎实际生产速度: 300-350 片/分钟(以S号为标准)
◎装机功率:140KW (380V 50HZ)
◎实际功率:110KW (380V 50HZ)断路器:600A
◎电线:3x70mm2+1x25mm2+1x16mm2
◎外型尺寸:(26.5x6x3)M(长x宽x高)
◎操作空间:(30.5x10x4)M(长x宽x高)
◎设备重量:约38吨
◎产品规格(mm):长x宽(注:可定做规格)
小号:(380x270) 中号:(450x310)
大号:(520x330) 特大号:(540x340)

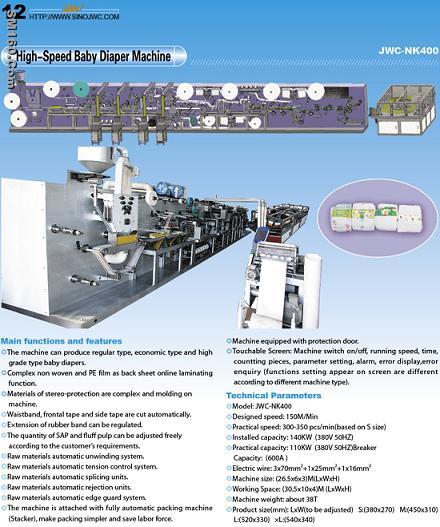

Main functions and features
◎The machine can produce regular type, economic type and high grade type baby diapers.
◎Complex non woven and PE film as back sheet online laminating function.
◎Materials of stereo-protection are comple× and molding on machine.
◎Waistband, frontal tape and side tape are cut automatically.
◎E×tension of rubber band can be regulated.
◎The quantity of SAP and fluff pulp can be adjusted freely according to the customer’s requirements.
◎Raw materials automatic unwinding system.
◎Raw materials automatic tension control system.
◎Raw materials automatic splicing units.
◎Raw materials automatic rejection units.
◎Raw materials automatic edge guard system.
◎The machine is attached with fully automatic packing machine (Stacker), make packing simpler and save labor force.
◎Machine equipped with protection door.
◎Touchable Screen: Machine switch on/off, running speed, time, countting pieces, parameter setting, alarm, error display,error enquiry (functions setting appear on screen are different according to different machine type).
Technical Parameters
◎Model: NK400
◎Designed speed: 150M/Min
◎Practical speed: 300-350 pcs/min(based on S size)
◎Installed capacity: 140KW (380V 50HZ)
◎Practical capacity: 110KW (380V 50HZ)Breaker
Capacity: (600A )
◎Electric wire: 3x70mm2+1x25mm2+1x16mm2
◎Machine size: (26.5x6x3)M(LxWxH)
◎Working Space: (30.5x10x4)M (LxWxH)
◎Machine weight: about 38T
◎Product size(mm): LxW(to be adjusted) S:(380x270) M:(450x310) L:(520x330) ×L:(540x340)
