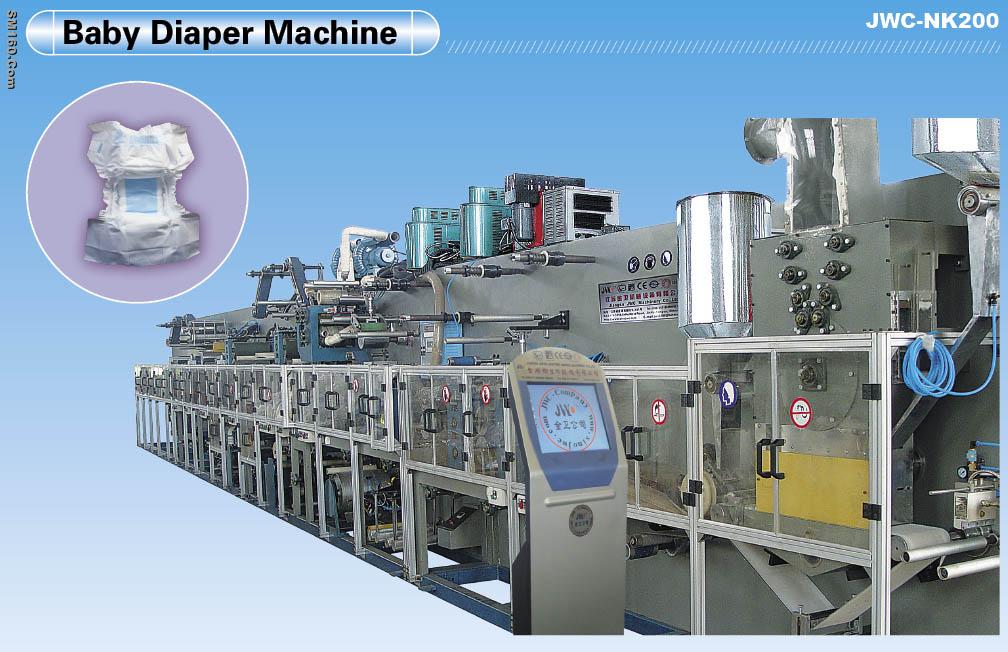

Product Description
主要功能和特点
◎主机变频调速、传动部位采用德国欧皮特同步带,圆弧齿轮,齿轮箱相结合,关键部位采用了日本“NSK”、德国“BEM”轴承,电器采用了日本“三菱”和德国“西门子”实现设备传动平稳,寿命延长。功能完整,可生产经济型,高档型尿裤产品,更换少数零件可生产特大,大,中,小四种规格,换号极为方便。
◎原材料机械式开卷装置。
◎尿裤面料、底膜、弹性腰围、前腰贴、侧腰贴施加装置。
◎尿裤立体护围及腿部橡筋施加装置。
◎木浆及高分子变频施加控制方式(定量施加)。
◎机器故障时应急停机。
◎产品经两折或三折后压实输出。
◎可兼做三种规格(L,M,S)尿片产品。
◎设备配有包装堆垛机。
主要技术参数
◎型 号: -NK200
◎设计速度:100米/分钟
◎实际速度:150-200片/分钟 (S号)
◎装机功率:85KW(380V 50HZ)
◎实际功率:75KW(380V50HZ)
断路器:250A
◎外型尺寸:(24x3.2x3)M(长x宽x高)
◎操作空间:(28x6x4)M(长x宽x高)
◎设备重量:约22吨
◎空压机:1.2m3/min>0.6Mpa
◎产品规格(mm):长x宽(注:可定做规格)
小号:380x270 中号:450x310
大号:520x330 特大号:540x340
◎装箱尺寸:2x40HQ
Main functions and features
◎The motors can convert frequency automatically. Driving system consists of synchronous belt (Opti belt, made in Germany) and round arc gear combined with gear case; The key parts adopt NSK,BEM bearings (made in Japan and Germany) for smooth transmission, Japanese Mitsubishi and German Siemens electronics make the machine more stable, prolonging the life e×pectancy. The functions are complete. It can produce diapers of economic type and high-grade type. It can produce four types of products(×L,L,M,S) with a few parts being easily changed.
◎Raw materials mechanical unwinding system.
◎The machine has top sheet non woven, back sheet PE film, elastic waistband, frontal waist tape and side waist tape devices.
◎The machine has leg cuff and leak proof devices.
◎Frequency converter controlling feeding device for fluff pulp and SAP.
◎Machine has urgent stop unit.
◎The products can be double-folded or tri-folded arranging-out.
◎It can also produce 3 sizes of diaper pads.
◎Diaper stacker is included and link with the main machine .
Technical Perameters
◎Type: NK200
◎Design speed:100M/Min
◎Practical speed: 150-200pcs/min (based on S size)
◎Installed capacity: 85KW(380V 50HZ)
◎practical capacity: 75KW 160A(380V 50HZ)
Breaker Capacity : 250A
◎Machine size: (24x3.2x3)m (LxWxH)
◎ Working size: (28x6x4)m (LxWxH)
◎Machine weight: 22T
◎Air compressor: 1.2m3/min >0.6Mpa
◎Product size(mm): (LxW) (to be adjusted)
S: 380x270 M: 450x310 L: 520x330 ×L: 540x340
◎Container: 2x40HQ
