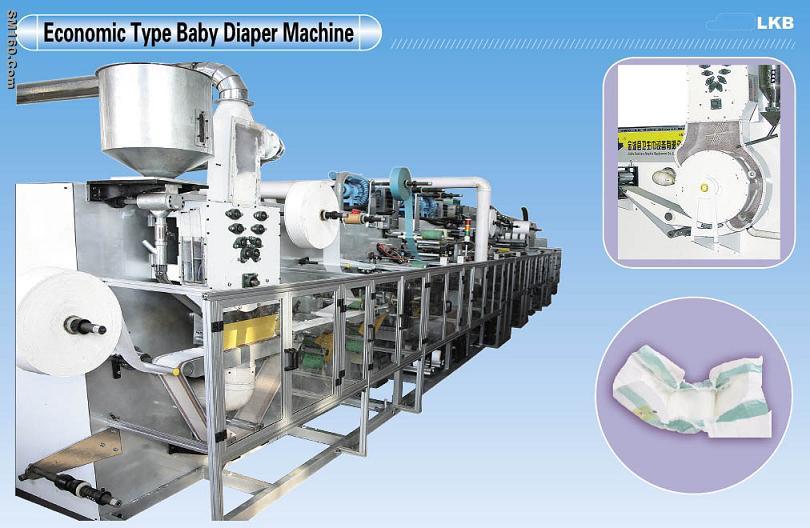

Product Description
主要功能和特点
◎绒毛桨采用成型鼓或集纤机定量供给,可生产经济型或普通型,码号为特大,大,中,小四种规格经济型尿裤 ,换号方便。
◎根据客户样品可选择生产 “I” 型或”T”尿裤。
◎设备具有面料无纺布、底膜、前腰贴、侧腰贴施加装置。
◎设备具有网面三片式立体防漏护边。
◎设备具有立体护围在机分切,热压成型。
◎设备具有腿部橡筋施加装置。
◎侧边圆弧成型后经合翼纵向三折,整列输出,方便包装。
主要技术参数
◎型 号: LKB
◎设计速度:80米/分钟
◎实际速度:100-150片/分钟
◎装机功率:80KW(380V 50HZ)
◎实际功率:70KW(380V 50HZ)
断路器:250A
◎机器尺寸:(20x3.2x3)m(长x宽x高)
◎操作空间:(24x6x4)m(长x宽x高)
◎设备重量:约18吨
◎空压机:1m3/min >0.6Mpa
◎产品规格(mm):长x宽(注:可定做规格)
小号:380x270 中号:450x310
大号:515x330 特大号:540x340
◎装箱尺寸:1x40HQ+1x20GP
可选功能
◎弹性腰围施加装置
◎传导层施加装置
Main functions and features
◎The fluff adopts aggregate pulp feeding unit or forming drum feeding system. It can produce diapers of economic type or normal type. It can produce four types of products (XL, L, M, S) with only few parts changed.
◎The machine can produce I-shape or T-shape diapers which according to the customer’s samples. .
◎The machine has top sheet non woven , back sheet PE film ,frontal tape and side tape devices.
◎Both sides with leak proof cuffs.
◎Material for stereo shield is cut and shaped by hot press on the equipment.
◎It adheres to elastic ribbon to be formed for side leakage proof.
◎After the side arcs are shaped, the wings will be tri-folded lengthwise. The diaper pads will be output in line and easy for packing.
Main Technical Parameters
◎Type: -LKB
◎Designed speed: 80m/min
◎Practical speed: 100-150pcs/min
◎Installed capacity: 80KW(380V 50HZ)
◎Practical capacity: 70KW(380V 50HZ)Breaker : 250A
◎Machine size: 20x3.2x3M (LxWxH)
◎Working size: 24x6x4M (LxWxH)
◎Total weight: 18T
◎Air compressor: 1m3/min more than 0.6Mpa
◎Product size(mm): ( LxW) (to be adjusted)
S: 380x270 M: 450x310 L: 515x330 XL: 540x340
◎container: 1x40HQ+1x20GP
Options
◎Elastic waistband unit
◎Acquisition Layer unit.
