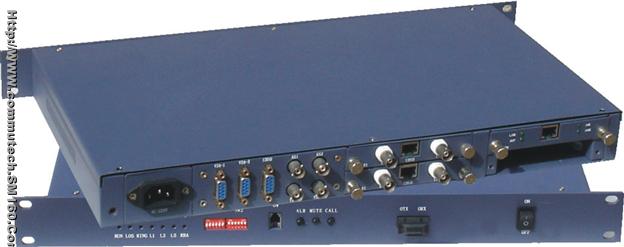

CT22120VF voice fiber optical multiplexer is the new generation fiber optical transmission and access equipments which apply the latest technology and professional super-sized programmable integrate circuit. It provides E1 digital channels, PCM voice transmission and RS232 digital transmission. Get over the times of simplex user’s interfaces of traditional fiber equipments. All the user cards can be inserted to main board slots so that users can configure requirement business interfaces flexible. It can let user assembled his equipment as E1 interface, V.24 interface or VF interface expediently. When user don’t need VF interfaces, it also can provides 4×E1 channels. This multiplexer is a convenient equipment that widely used in public operator networks and private networks such as railway, banking, government and electric power etc.

Features:

-According to ITU-T G.703, G.823 and G.742 recommendations.

-Built in digital Time-restore and Smooth Phase-lock technologies.

-Built in huge size super-scale integrate circuit (ASIC), working stable.

-The maximum transmission distance can reach to 120Km (DFB module)

-Provide 4×E1 transparent channels, each channel can be chosen as G.703/E1 interfaces or VF interfaces.

-Incoming call display function supported with VF interfaces. Each VF board has 4 VF channels, the whole equipment can provide 16 VF channels.

-Blocking design of drawer slots at the rear panel, user can configure his requirement expediently.

-All the user cards can be identified automatically.

-Clear alarm output, user could monitor local alarm and remote alarm through LED panel.

-Engineering order wire supported.

-SC fiber optic interface, FC and ST are optional

-Single fiber bi-direction supported (Optional)
