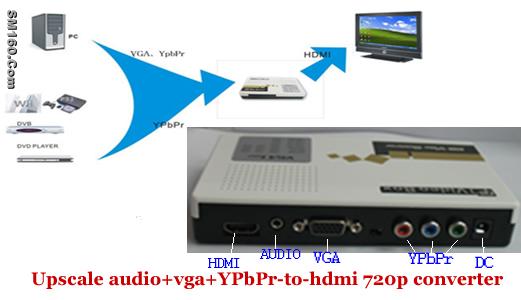

Lenkeng’s LKV351 is a real VGA + Component Video (YPbPr) +Audio to standard HDMI converter and scaler, which up-scales VGA or Component video to standard HDMI resolution 1280x720 (720p).

LKV351 is a VGA (with audio) to HDMI Scaler + Component  (with audio) to HDMI Scaler in one box. It enables you to connect your PC to your HDTV, and when you want to play PSP, wii, PS2, PS3 games on your HDTV, just click the small button on the box to switch to YPbPr input to enjoy the true-to-life picture on your HDTV.

Input: 1 VGA, 1 Component Video (Y Pb Pr)1 AUDIO Right, 1 AUDIO Left；
Output: 1 HDMI.
PC resolution Supported：
640*480@60Hz, 640*480@75Hz, 640*480@85Hz
800*600@60Hz, 800*600@75Hz, 800*600@85Hz
1024*768@60Hz, 1024*768@75Hz, 1024*768@85Hz
1280*720@60Hz,1280*768@75Hz,1280*960@60Hz
Note: Please set your graphic card resolution and refreshing rate among one of the above resolutions. This converter have DDC. Start your PC after the connection, the converter will turn to the best resolution automatically. If your PC don't have a DDC, this function will not work.
Optional YPbPr Resolutions:
480i@60 Hz, 480P@60 Hz,576i@50 Hz, 576P@50 Hz,720P@50 Hz,720P@60 Hz,1080i@50 Hz,
1080i@60 Hz, 1080P@50 Hz,1080P@60 Hz.
Note: When you want to input YPbPr, please also plug audio accessorily to the audio input.
HDMI output:720P; HDCP compatible: V1.2
Feature:
It can provide the Matched cards, interface and connection guide for STB and DVD manufacturer
Installation and connection
Power supply: This video switcher uses 5V/2A DC power.
Input YPbPr, VGA signal: RGB signal peak value: 07VPP
Impedance: 75Ω;HDMI signal output:
HDMI support 5Gbps data transmission rate, the longest transmitter distance is 15 meters,
After you connected the product according to the interface explain, you can press YPbPr, VGA input switch key to transform output signal and reach the transform image effect that you want.(Note, Only one audio input when both VGA and YPbPr are connected)
Installation and connection
Power supply: This video switcher uses 5V/2A DC power.
Input YPbPr, VGA signal: RGB signal peak value: 07VPP
Impedance: 75Ω;HDMI signal output:
HDMI support 5Gbps data transmission rate, the longest transmitter distance is 15 meters,
After you connected the product according to the interface explain, you can press YPbPr, VGA input switch key to transform output signal and reach the transform image effect that you want.(Note, Only one audio input when both VGA and YPbPr are connected)
