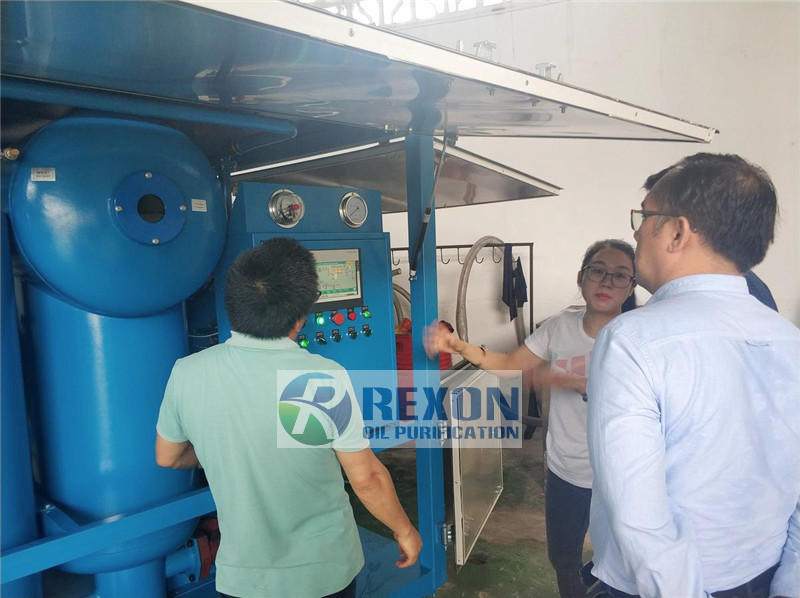

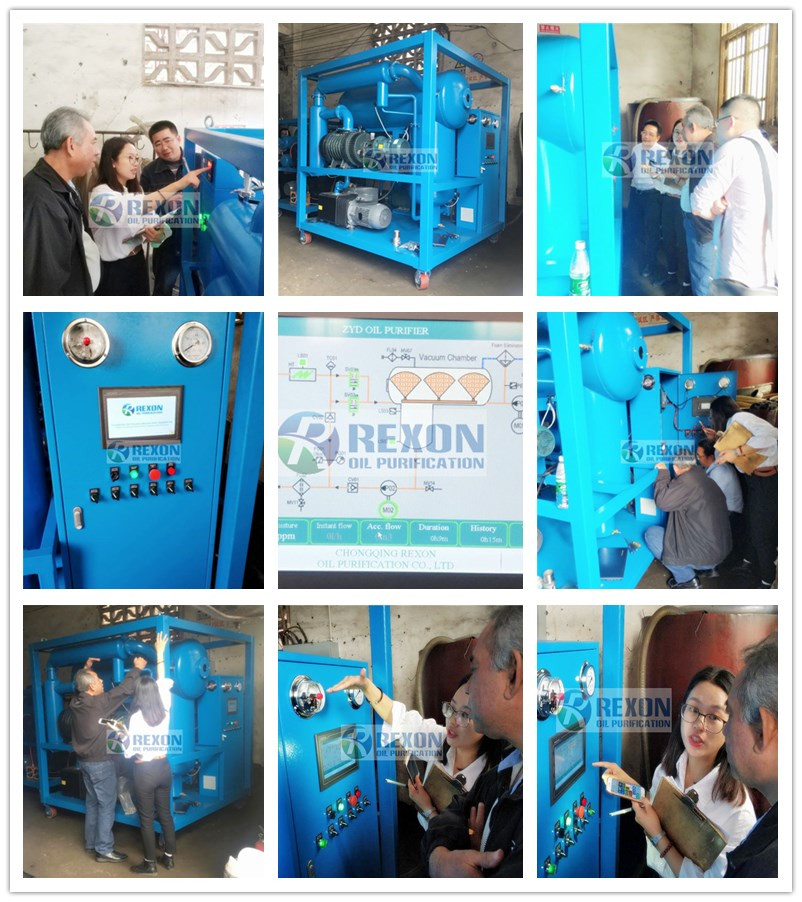

Transformer oil filter equipment test run
https://www.rexonop.com  https://www.purifyoil.com
Hi-Vacuum transformer oil treatment is mainly used for removing trace water, gas and impurities from insulating oil
Hi-Vacuum transformer oil treatment is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification of 110KV,220KV,500KV,750KV,1000KV power transmission equipment insulating oil.
Also it applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV.
Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum filling.
Insulating oil performance mainly decided by oil's water content, If the water is not saturation in the oil, it appears as the molecular states; If the water is saturation in the oil, it appears as the liquid states and stay at the bottom of container.
Under the vacuum states, because the less gas content, the water and gas in the oil will be escaped from the oil and evacuated by the vacuum pump.
The higher vacuum value(Close to 0 Pa),the higher speed of water molecular volatilization(The latest technology, the vacuum oil purifier can reach to 1 Pa working vacuum value).
The gas  and water which dissolved in the oil will become degassed and exhausted by vacuum pump.
The oil temperature affects vacuum oil purifier working efficiency, the higher temperature, the water molecular get more kinetic energy, so it is higher diffused speed of water molecular.
But, exorbitant temperature will cause fracture of carbon chain for oil molecular, if that will make oil bad.
So we don't suggest the oil temperature excess 80°C. Also the impurity will affect oil dielectric strength, so the vacuum oil purifier requires high filtration precision.
High Vacuum Double Stage Transformer Oil Filtering Machine, Oil filtration unit, Vacuum insulation oil purifier
This Double Stage Transformer Oil Filter Machine is brought to the clients at competitive prices.
This Double Stage Transformer Oil Filter Machine is brought to the clients at competitive prices. The Double Stage Transformer Oil Filter Machine undergoes rigorous quality control tests to make it devoid of all defects.
The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, dielectric oil and so on. It also can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, as the bridge-type vacuum linking system, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.
Features:
Capacity ranges from : 1000 LPH to 30000 LPH
Inlet Stainless Steel Filter is easy to clean and used to catch hold coarse dirt
Standard efficiency of 0.5 / 1 Micron after fine filter
Heat exchange through very low specific power electric heaters
To improve the vacuum pumping speed, vacuum pump set in combination with rotary vane vacuum pump and roots pump are provided
Easy to operate
Compact equipment is also provided with pneumatic wheels for easy transport on road
Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively
Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power
UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effect
Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after treatment
adopts the double-infrared liquid automatic controller, sensitive automatic pressure protector and the high effective equipment for degas, so it is easy to operate
Options :
Digital precision vacuum gauge
Digital flow meter
Digital on line moisture reader/PPM Tester
Oil flow changing system to adjust oil flow as needed
Oil Regeneration Device to remove the acidity in oil
PLC fully-auto control system
Fully-enclosure and Semi-enclosure for weather-proof & dust proof
Mobile Trailer for long distance transport
