Product Description

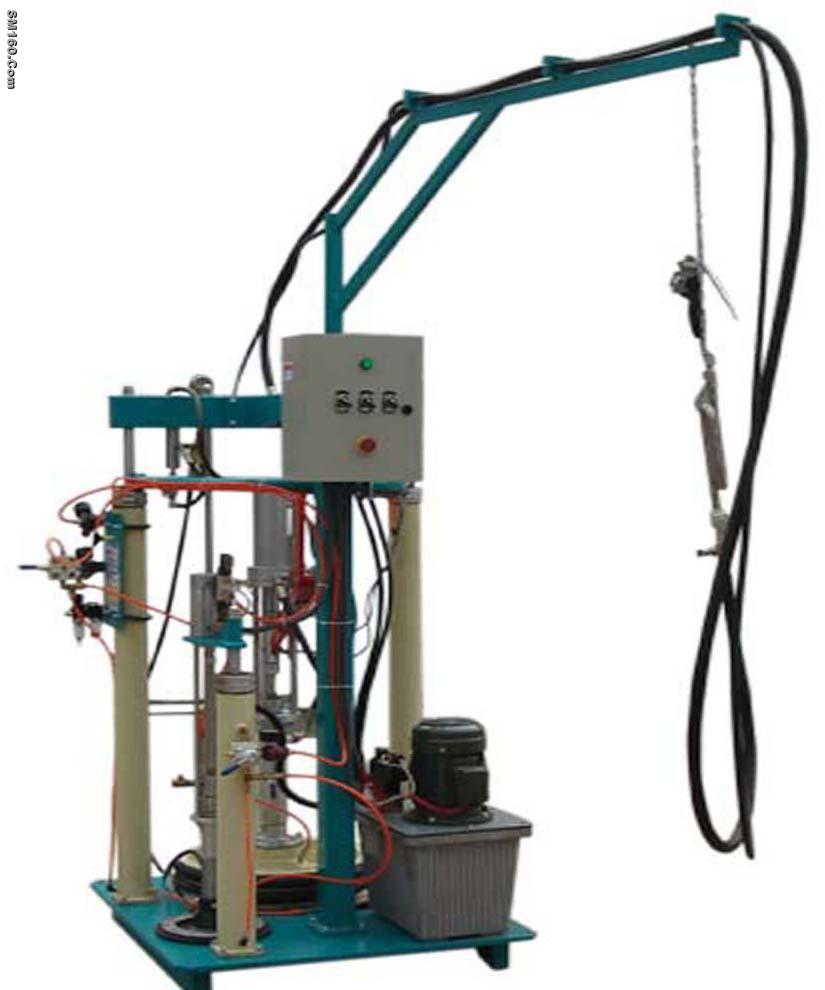

ST03 Two-Component Extruder
1) Lightweight dexterity, mixing glue uniform, convenient operation of sealing gun
2) The host pump, the auxiliary pump adopts the stainless steel, and production fine, durable
3) A wide range of adjustment ratio, adjusted convenience
4) The host pump and auxiliary pump of volume is large and apply all the viscosity plastic of glue
5) Equipment maintenance is easy, do not need to increase lubricant to ensure good sealing
6) The supercharger can mode synchronous interaction ratio, adjusted ratio is very convenient
7) The single needle valve will not ensure that mixted body return and avoid solidification in the tube
8) The sealing ring of material are imported Teflon quality material which is durable
9) Adopt the imported protection valve which is easy to operate and used to safety
ST03 Two-component Extruder is the key equipment which produce the insulating glass, applies to insulating glass production and manufacture of echanical seal bonding. The equipment will be required for supplying, ratio, mixing,spraying, which integrates the work sets.Finally sealed insulating glass with bicomponent glue, and which must be uniformly mixed in proportion, then was out of glue guns, sealed insulating glass edges.
Technique parameter
Standard drum
A glue: 200L (for basic component)
B glue: 20L(for catalyst)
Mixing Ratio: 7:1-14:1
Air pressure: 6Kgf/cm*cm
Electricity: 4Kw 380v 50Hz
Weight: 350Kg
Sealant: silicon/sulfide/urethane
