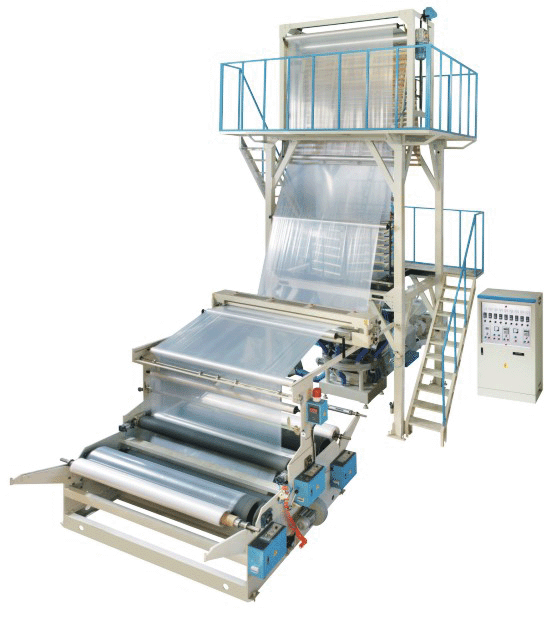

SD-H45-65 PE High speed film blowing machine

Price: Negotiable / Piece(s)
Min. Order: 1 Piece(s)
Stock: 0
Port

Send Inquiry Favorite

Ruian Hongguang Machinery Company

Location:: zhejiang,China
Main Category:: Hardware and Machinery
Main Products:: film blowing machine,bag making machine,printing machine,slitting machine

Contact Info.

Product Description

Use characteristic:

This machine mainly uses in blowing the system by HDPE, LDPE, LLDPE, for raw material mulching plastic, big awning membrane and packing membrane. The extruding machine material tube, the screw rod use the high quality alloy steel, after the nitriding and the precise processing, is wear-resisting, is anti-corrosive, controls automatically warm, accurate reliable, uses rubs the double volume organization, automatic idea rice, ease of operation .

Technical parameters:

Model :SD/A-45E SD/A-50E SD/A-55E SD/A-65E
suitable material :HDPE
film width: 200-600 300-800 400-1000 600-1300
film thickness :0.009-0.05 0.009-0.05 0.009-0.05 0.01-0.05
Max.extrusion output :50kg/hr 55kg/hr 60kg/hr 65kg/hr
Extruding machine
Screw diameter: 45 50 55 65
Screw L/D length :28:1
Screw material :SACM-645/38 CRMOALA
Cylinder material :SACM-645/38 CRMOALA
Cylinder cooling :370w*2 370w*2 550w*2 550w*3
Main engine power :15 18.5 22 37
temperature control :3 3 3 4
Average power consumption :18 26 31 45
Die head
Die size: 60/80 80/100 100/125 125/150
Temperature control :3
Air ring: 1
Air blower :2.2 2.2 3 5.5
Center steady stick :2
take-up upunit
roller width :165*650 165*850 165*1100 165*1400
height adjustable type :700mm
take-up speed :10-100 10-100 10-100 10-80
take-up power :0.75 1.5 1.5 1.5
winding unit
Surface friction type :SURFACE FRICTION TYPE
winding power: 5 10 10 16
winder speed: 10-100 10-100 10-100 10-80
Occupying a land area of size :5.0*2.0*4.5 5.0*2.2*5.0 5.5*2.5*5.5 5.8*2.8*6.5
