Product Description
This product is suitable for the market of automobile accessory. It can support GPS navigation, digital video recordor,radar detector, wireless camera for reversing car, Blue tooth hands-free communication, AV entertainment applications. It can also be matched with car DVD, audio. It is a perfect solution for automotive electronics.
|
Feature
|
Note
|
|

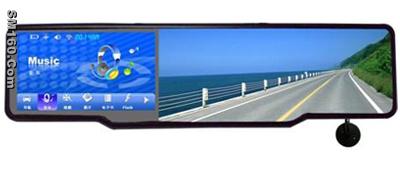

Rear view mirror
|
Wide-angle view & double curvature & Blue Coating avoid dazzle
|
|
GPS navigation
|
Support maps on windows CE 6.0
|
|
Radar detector
|
1. High sensitive radar receiver with latest VCO technology provides full band detection. Such as X band, K band, Ka band, Ku band and laser.
2. Voice alert is adjustable on 4 levels of volume: loud, medium, quiet and mute.
3. City/Highway mode switch to eliminate false alert by auto-door controller etc.
|
|
Wireless camera for reversing car
|
1. Received frequency: 2.4GHZ.
2. Photosensitive components 1/4-inch color, CMOS,
3. Pixel 628X582, resolution of 380TV lines
4. The illumination 3LUX (infrared light at 0 Lux)
5. Lens 2.8mm,
6. Standard PAL / NTSC,
7. RCA video output interfaces,
8. Angle 170 degrees
9. 0-5 meters night vision distance,
10. With the line of distance,
11. Waterproof
|
|
Blue tooth for hand free communication
|
CSR Blue tooth provides for data and voice communications
1. Operating Frequency Band 2.4GHz -2.48GHz unlicensed ISM band
2.Bluetooth Specification V2.0
|
|
Digital video record
|
Support D1/VGA/QVGA video record, audio record, support up to 32GB TF
|
|
FM Transmitting
|
From 87 to 108MHz. <10 Meter
|
|
Music
|
Audio Format: WAV, MP3, WMA
|
|
Movie
|
Video Format: AVI, MP4, MPG, WMV, 3GP
|
|
Picture view
|
Photo Format: JPG, GIF, BMP, PNG
|
|
E-book
|
Text Format: TXT,
|
|
Game
|
|
【Specification】
|
Software
|
|
Operating System
|
Win CE .Net 6.0
|
|
|
O/S Language
|
Chinese, English, French, Portuguese, Italian, Spanish, Dutch, German, Korean, Japanese, Arabic etc.
|
|
|
Hardware
|
|
CPU
|
ARM 9
|
533MHz
|
|
|
Memory
|
NAND flash
|
128MB
|
|
|
SDRAM
|
128 MB
|
|
|
GPS Receiver
|
GPS Module
|
High sensitivity GPS solution.
|
|
|
Acquisitions Channels
|
66
|
|
|
Tracking Channels
|
22
|
|
|
Tracking Sensitivity
|
-161dB,Typical
|
|
|
Acquisition Sensitivity
|
-148dB,Typical
|
|
|
Cold Start (Open Sky)
|
29seconds
|
|
|
Cold Start (Average)
|
45 seconds
|
|
|
Hot Start
|
2 seconds
|
|
|
Antenna
|
Internal Antenna
|
Embedded type, Patch Active Antenna (25mmx25mm)
|
|
|
Display
|
Color TFT
|
4.3 TFT,
|
|
|
Color
|
64K colors,
|
|
|
Power
|
Supply DC Voltage
|
12V or 24V
|
|
|
Power
|
12V, 1A
|
|
|
Input/Output
|
Touch Panel
|
Resistive type touch panel
|
|
|
Speaker
|
1.5W
|
|
|
SD/MMC Card Slot
|
SD/MMC slot, capacity up to 4 GB
|
|
|
USB
|
Mini 5 Pin, Type B, connect to radar detector.
|
