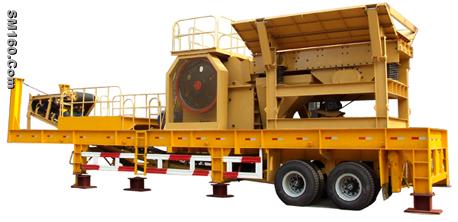

YG-type crude production broken mobile crushing plant is a new rock crusher, which greatly expanded the concept of rough broken areas of operation. It is designed to stand in the position of our customers, to eliminate fragmentation site, the environment breaking work of the barriers to customers as a primary solution, and provide customers with cost effective operation of the project hardware.



 YG938E69 type mobile crusher station's high performance: PE series high performance crusher, crushing machine with integrated feeder and vibrating screen, belt conveyor under screen, vibrating screen, crusher integrated vehicle installation, steering traction axis, to facilitate road transport and venues in-depth, vehicle installation support, equipment to facilitate site stationed fast, car motors and control box integration YG938E69 type mobile crushing station purposes and advantages


1, integrated installation package unit integration unit form, eliminating the split components of the complex field infrastructure installation, reduced material and consumption hours. Reasonably compact space unit layout, and enhance the flexibility of field presence.
2, mobility and flexible YG938E69 Coarse broken mobile crushing high construction site vehicle, body width is less than operating trailer, small turning radius, ease of ordinary road traffic, easier to break the site area in rugged driving poor road conditions. Entered the site for the quick save time. Stationed in the region more conducive to a reasonable construction, the overall fragmentation process provides a more flexible space and reasonable layout configuration.
3, reduce materials transportation cost YG938E69 Coarse broken mobile crushing plant, materials can be broken the first line of the site, eliminating the material is removed from the middle of another broken link, greatly reducing the cost of transporting materials. Another more extended set of materials sent directly to the transfer carriage broken bucket, turn away from the scene.
4, the role of direct and effective integration of operating a series of mobile crushing station, can be used independently, can process for the customer's material type, product requirements and provide more flexibility in the process configuration, to meet the user mobile crushing, mobile screening and other Gezhong requirement to generate organization, logistics, transport more direct and effective, maximize cost reduction.
5, adaptable and flexible configuration YG938E69 Coarse broken mobile crushing plant for coarse crushing, grinding and sieving systems can be stand-alone group of independent operations, but also the flexibility to configure the unit co-operation component systems. Discharge hopper side of the material handling method for the screening provides a variety of configuration flexibility, integration, configuration of the diesel generator unit addition to the power of this unit, but also can be targeted to the joint power supply unit system configuration process.

Technical parameters of mobile crushing plant：

Units constitute	Unit transport parameters	Unit operating parameters
Crusher EP600X900 Feeder -l 3800mm -w 960mm Belt -Standard length: 9500mm -Elongated length: 11600mm -Elongated length:650mm	Transport length L1：12500mm Transport width B1：2450mm Transport height H1：4000mm Chassis height H4：1720mm Tire chassis height difference H5: 380mm And biaxial loading Dual tires on each side type11.00-20 Total weight Standard unit 37650kg Extended Unit 38000kg	Motor Power：91.5KW Capacity：70-140T/H Feeding a high degree of H3：4500mm Standard unit Equipment Length L2：13150mm Feeding a high degree of H2：2700mm Extended Unit Equipment Length L2：15050mm Feeding a high degree of H2：3100mm

Table 2 mobile crushing stations

Units constitute	Unit transport parameters	Unit operating parameters
Crusher EP600X900 Feeder -l 3800mm -w 960mm Diesel generator -type：MP-180-4 -power：225KVA 180kw -weight：2400KG Belt -l: 12600mm -w: 650mm	Transport length L1：14000mm Transport width B1：2450mm Transport height H1：4000mm Tire chassis height difference H5: 380mm Chassis heigh H4：1720mm And biaxial loading Dual tires on each side type11.00-20 Total weight:41100kg	Motor Power：93.5KW Capacity：70-140T/H Feeding a high degree of H3：4500mm Equipment Length L2：16300mm Feeding a high degree of H2：3300
