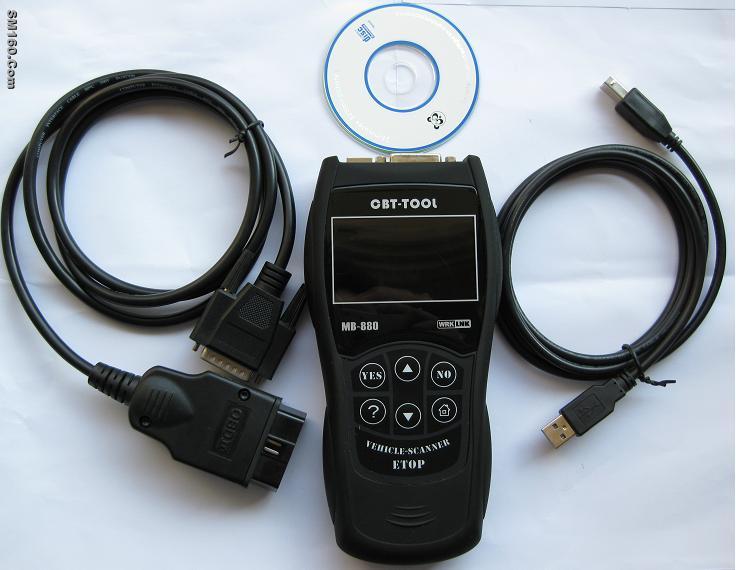

SCANTOOL MB880
Multi-language user interface, supports up to 15 languages.

Application layer fully complies with ISO 15031 and is compliant with SAE J1979.

Fully functional Mode$01~Mode$09 operation.

Supports  a large number of vehicles made by 70 manufacturers.

DTC includes  generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1,B2 ,U1 and C1,C2,) codes.

Detailed DTC library：DTCs are explained in easy to understand words rather than obscure jargons. Online help information is available for 80% of all the DTCs，which shows the probable  cause of the code.

SUPPORT PROTOCOL:

 SAE J1850 PWM
 SAE J1850 VPW
 ISO9141
 KWP FAST INIT
 KWP 5BAUD INIT
 CAN 11BIT 500K
 CAN 29BIT 500K
 CAN 11BIT 250K
 CAN 29BIT 250K
 CAN_USER1 11B 125K
 CAN_USER1 29B 125K
 CAN_USER2 11B 50K
 CAN_USER2 29B 50K

  *** Full CAN BUS support for new cars
  *** 11 Bit and 29Bit CAN
  *** Capable of communicating with multi-ECU System

SUPPORT LANGUAGE
15 languages user interface, and capable of adding other language supports in future.
Chinese
English
German
French
Italian
Denish
Finnish
Dutch
Spaish
Portuguese
Norwegian
Hebrew
Swedish
Korean
Arabic

Feature:
1.Color： Scarlet 、dark blue、 Pearl Blue、Green Blue、Metal Black、Orange
2.LCD：3 inch black mask LCD, wide visible area, high contrast 。The contents is readable even in strong sun shine.
3.ABS+PC Engineer Plastic Housing（passed 6-meter free fall test.）Patent No.:200830010963.5.
4Harmless fade-resistant paint.
5.Rubber oil sprayed housing; slide, dirty, and vibration proof.
6.Passed EMI/EMC test.
7.High quality PET 6-key film keypad.（3M harmless glue）
8.CE，FCC，RoHs Certified
9.Support manually input DTC Look-up
10.Read DTCs
11.Clear DTCs
12.Data stream
13.Freeze Frame
14.I/M Readiness
15.O2 Monitor Test
16.On-Board Mon. Test
17.Component Test
18.Vehicle Info.
19.Modules Present
20.Unit of Measure
21.State Emission
22.Read All DTCs
23.Read Stored DTCs
24.Read Pending DTCs
25.Detailed help information
26.Capable of showing probable cause of a DTCs.
27.Up to 161 data items，each of them is with online help information.
28.Reset engine MIL
29.This operation will  erase all DTCs , freeze frame Data , oxygen
  sensor data, and reset  IM Monitors and MIL.

Main Unit：190mm×93mm×30mm
LCD：128×64 Black Mask LCD
Visible view：67mm×40mm
Cable：J1962 120cm
Package：Paper board box
Size：295mm×152mm×65mm
Unit Weight:198g
Cable Weight:116g
Package Weight:160g
Gross Weigh:490g
