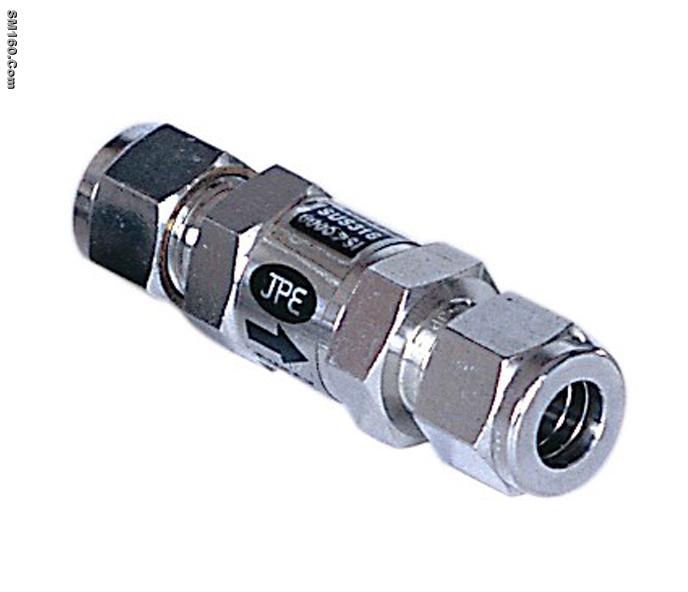

JPE CHECK VALVE-TUBE END

Negotiable / Piece(s)

Min. Order 1 Piece(s)

Yean Hern Enterprise Co., Ltd

JPE CHECK VALVE-TUBE END

Price: Negotiable / Piece(s)
Min. Order: 1 Piece(s)
Stock: 0
Port

Send Inquiry Favorite

Yean Hern Enterprise Co., Ltd

Location:: Kaohsiung County,Taiwan
Main Category:: Hardware and Machinery
Main Products:: JPE, tube fitting, ball valve, yeanhern, check valve, needle valve, kun shan yean hern, yean hern enterprise

Contact Info.

Product Description

* Description :

v Variety of end connections included “JPE” tube end, male or female NPT and ISO., DIN and JIS tapered pipe ends.

v 100% factory tested for both crack & reseal.

* Specification :

DESCRIPTION	Orifice		Conn./Size	Dimensions ( mm )
DESCRIPTION	mm	In.	Inlet/Outlet	D	I	E	L	H	H1
CV-02OD	5	0.197	1/4”OD	6.35	30.5	15.5	66.5	19	14
CV-03OD	6.5	0.256	3/8”OD	9.525	31	16.5	71	19	17
CV-04OD	11	0.433	1/2”OD	12.7	39	19.5	94.5	32	22
CV-06OD	11	0.433	3/4”OD	19.05	59	20	105.5	32	30
CV-6OD	5	0.197	6mmOD	6	30	14.5	65.5	19	14
CV-8OD	5	0.197	8mmOD	8	30.5	14.5	67	19	17
CV-10OD	5	0.197	10mmOD	10	30.5	16.5	69	19	19
CV-12OD	10	0.394	12mmOD	12	59	19	102	32	22

* Features :

1. Working pressure range to 3000PSI
2. Temperature rating to 250℉ (121℃) with Buna
3. Inline check valve
4. Instant shutoff in upstream condition
5. 100% factory tested
6. Locks pressure in consumer
7. Stops reversed flow in order to protect instrumentations
8. Purge system
9. Suitable for gas or liquid

※ Technical Data 1. Max. Working Pressure: Brass- 1500 PSI (10,300 kpa)
                                        SUS316- 3000 PSI (20,600 kpa)
2. Temperature Ratings: Viton: -23℃ to 191℃(-10℉ to 375℉)
                                    Buna: -23℃ to 121℃(-10℉ to 250℉)
3. Nominal Cracking: 1, 10, 25PSI (2, 6, 66, 170 kpa)
                               Option: Spring with Cracking Pressure up to 100PSI

Yean Hern Enterprise Co., Ltd

Company Introduction

YEAN HERN was established in 1982 in Kaohsiung Taiwan (Its registered trademark is JPE). We specialize in manufacturing and exporting overseas Quick Coupling, Pipe/ Tube/ Hose, Tube Fitting, Instrument Ball Valves/ Valve Manifolds/ Needle Valves/ Check Valves, Pressure Reducing Regulators, Pneumatic and Hydraulic Parts as well as Accessories in the industries of Petrochemical, Power Plant, Semi-Conductor, Pulp & Paper and Pharmacy etc. Total accuracy in manufacturing and quality is maintained through 100% factory tested. Yean Hern is certified as of ISO 9001. Our goal is to persist in R&D and to offer customers high quality products, competitive pricing and superior services.
