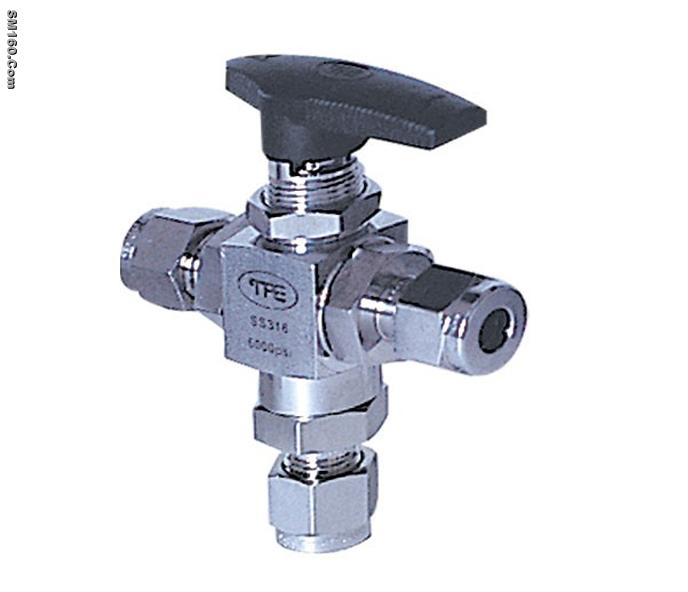

JPE 3WAY-BALL VALVE-TUBE END

Negotiable / Piece(s)

Min. Order 1 Piece(s)

Yean Hern Enterprise Co., Ltd

JPE 3WAY-BALL VALVE-TUBE END

Price: Negotiable / Piece(s)
Min. Order: 1 Piece(s)
Stock: 0
Port

Send Inquiry Favorite

Yean Hern Enterprise Co., Ltd

Location:: Kaohsiung County,Taiwan
Main Category:: Hardware and Machinery
Main Products:: JPE, tube fitting, ball valve, yeanhern, check valve, needle valve, kun shan yean hern, yean hern enterprise

Contact Info.

Product Description

* Description :

v2-way on-off, 3 way switching models.

vFloating ball design for positive sealing.

vMaximum Working Pressure: 3000PSI (206bar) at 20℃ to 250℃ with PTFE packing. 6000PSI (413bar) with PEEK packing

vVariety of end connections included “JPE”tube end, male or female NPT and ISO., DIN and JIS tapered pipe ends.

vBlow-out proof bottom loaded stem.

v100% Factory tested.

* Specification :

Conn. / Size	Orifice		Dimensions ( mm )
Inlet / Outlet	mm	In.	A	B	C	D	E	F	G	H	I
3mm OD	5	0.197	68.5	34.3	41.5	36.5	48	29	14	6	20
6mm OD	5	0.197	71	35.5	41.5	36.45	48	29	14	6	20
8mm OD	5	0.197	73	36.5	43	36.5	48	29	14	6	20
10mm OD	5	0.197	73	36.5	43	36.5	48	29	14	6	20
1/8” OD	5	0.197	68.5	34.3	41.5	36.5	48	29	14	6	20
1/4” OD	5	0.197	71	35.5	41.5	36.5	48	29	14	6	20
3/8” OD	5	0.197	73	36.5	43	36.5	48	29	14	6	20

* Features :
1.On/off service ball valve with 2-way pattern and diverter service ball valve with 3- way pattern.

2.MAWP 3000psi (206Bar) and MAWT 400℉ (204℃)

3.Material is available in 316 Stainless Steel, Brass, Monel and Hastelloy C276.

4.The floating ball design to provide seat wear compensation and ensure leak proof shut off on pressure.

5.Bi-directional flow.

6.Micro-finished ball provides a positive seal.

7.Wide range of end connection, available with JPE tube end, NPT or BSP/ISO taper thread in male and female end.

8.Handle indicates flow direction and color code handles.

9.Panel mountable.

10.100% factory tested. Each valves is 100% tested with nitrogen at 1000psi (69 bar) for leakage at the seat end stem packing or hydrostatic shell test in performed at 1.5 times the working pressure
