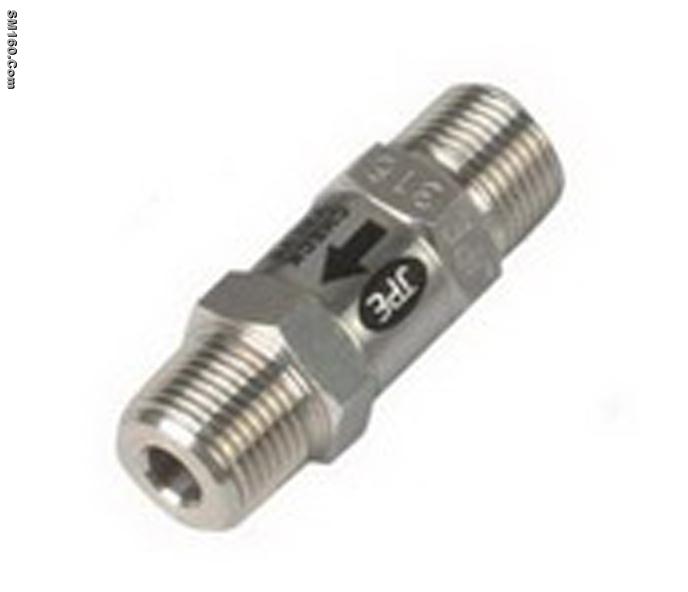

JPE CHECK VALVE-MALE
- Price
- Negotiable / Piece(s)
- Min. Order
- 1 Piece(s)
- Stock
- 0
- Port
- Location:
- Kaohsiung County,Taiwan
- Main Category:
- Hardware and Machinery
- Main Products:
- JPE, tube fitting, ball valve, yeanhern, check valve, needle valve, kun shan yean hern, yean hern enterprise
Contact Info.
Product Description
* Description :
v Variety of end connections included “JPE” tube end, male or female NPT and ISO., DIN and JIS tapered pipe ends.
v 100% factory tested for both crack & reseal.
* Specification :
|
DESCRIPTION |
Orifice |
Conn./Size |
Dimensions ( mm ) |
|||||
|
mm |
In. |
Inlet/Outlet |
D |
I |
E |
L |
H |
|
|
CV |
6.5 |
0.256 |
1/ PT / NPT thread |
1/ |
26.5 |
13 |
52.5 |
19 |
|
CV |
7 |
0.276 |
3/ PT / NPT thread |
3/ |
28 |
14 |
56 |
19 |
* Features :
1. Working pressure range to 3000PSI
2. Temperature rating to 250℉ (121℃) with Buna
3. Inline check valve
4. Instant shutoff in upstream condition
5. 100% factory tested
6. Locks pressure in consumer
7. Stops reversed flow in order to protect instrumentations
8. Purge system
9. Suitable for gas or liquid
※ Technical Data
1. Max. Working Pressure: Brass- 1500 PSI (10,300 kpa)
SUS316- 3000 PSI (20,600 kpa)
2. Temperature Ratings: Viton: -23℃ to 191℃(-10℉ to 375℉)
Buna: -23℃ to 121℃(-10℉ to 250℉)
3. Nominal Cracking: 1, 10, 25PSI (2, 6, 66, 170 kpa)
Option: Spring with Cracking Pressure up to 100PSI
