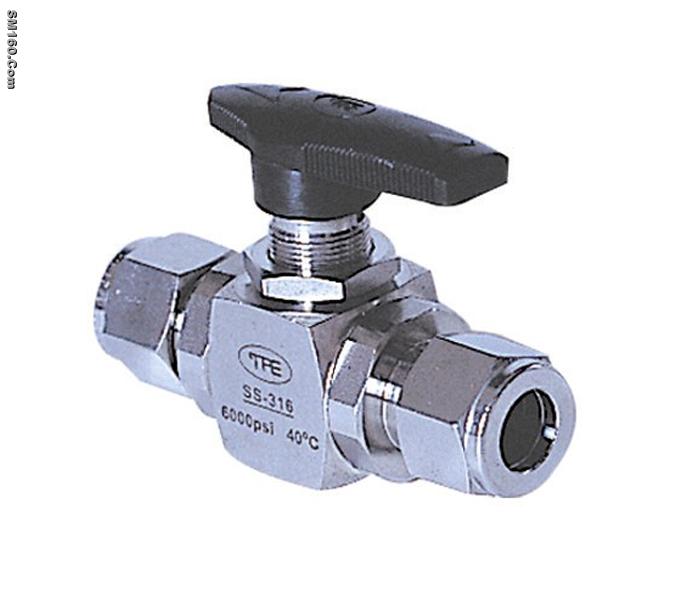

* Description :

v 2-way on-off, 3 way switching models.

v Floating ball design for positive sealing.

v Maximum Working Pressure: 3000PSI (206bar) at 20℃ to 250℃ with PTFE packing. 6000PSI (413bar) with PEEK packing

v Variety of end connections included “JPE”tube end, male or female NPT and ISO., DIN and JIS tapered pipe ends.

v Blow-out proof bottom loaded stem.

v 100% Factory tested.

1.      On/off serviceball valve with 2-way pattern and diverter service ball valve with 3-way pattern.

2.      MAWP 3000psi (206Bar) and MAWT 400℉ (204℃)

3.      Material is available in 316 Stainless Steel, Brass, Monel and Hastelloy C276.

4.      The floating ball design to provide seat wear compensation and ensure leak proof shut off on pressure.

5.      Bi-directional flow.

6.      Micro-finished ball provides a positive seal.

7.      Wide range of end connection, available with JPE tube end, NPT or BSP/ISO taper thread in male and female end.

8.      Handle indicates flow direction and color code handles.

9.      Panel mountable.

10.  100% factory tested.  Each valves is 100% tested with nitrogen at 1000psi (69 bar) for leakage at the seat end stem packing or hydrostatic shell test in performed at 1.5 times the working pressure.
