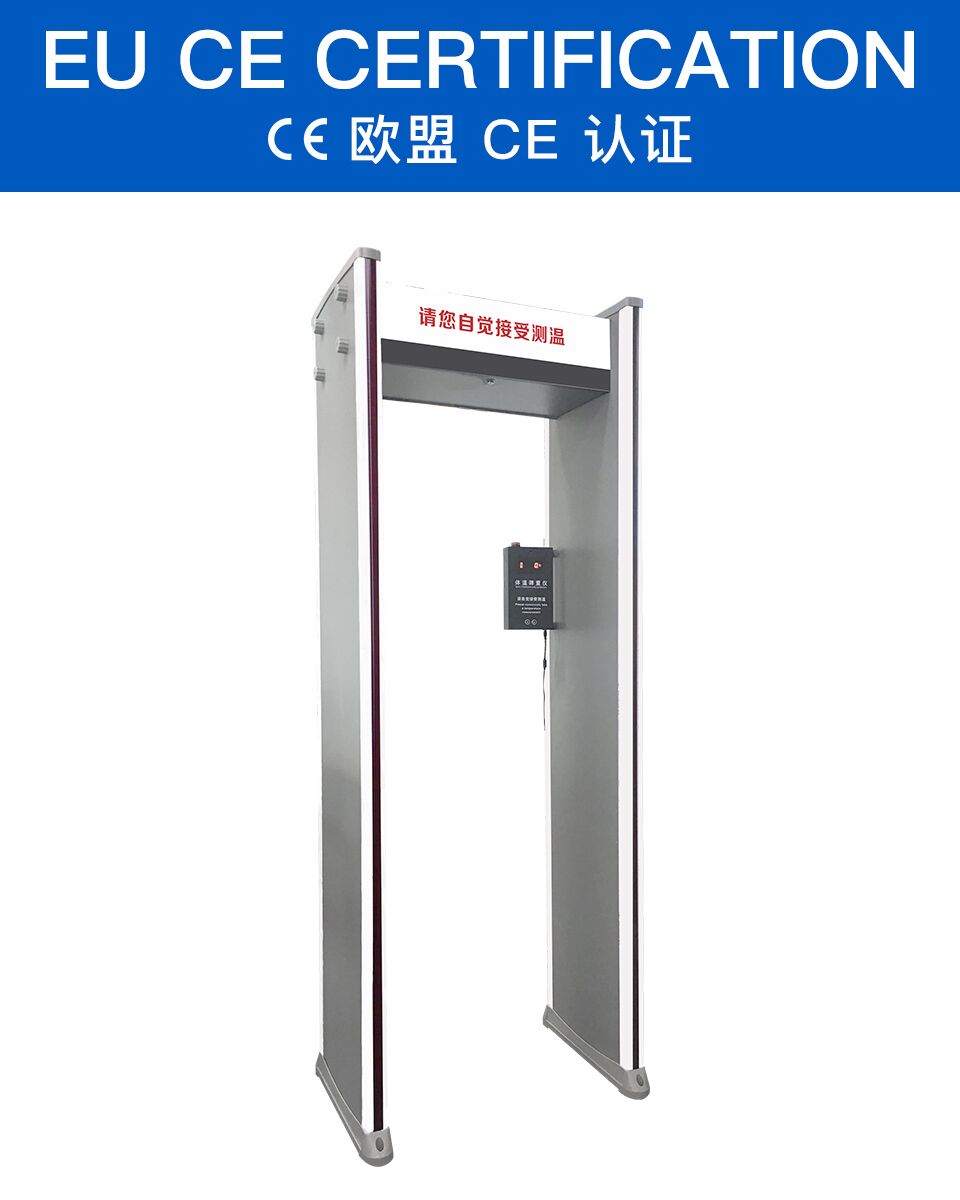

Human body temperature measuring door supports CE eu certification export,Portal type human body thermometer, infrared thermal imaging human body temperature monitoring and control system, portable active temperature screening and security box, wireless temperature sensor, infrared thermal imaging temperature screening and early warning system

To control and reduce the spread of fever and other fever epidemics, the temperature measurement door and infrared temperature detection door suddenly attracted people's attention. It is used for intensive human body temperature monitoring. It is suitable for stations, airports, docks, high-end hotels, enterprises, schools, hospitals and other places with large crowd flow to monitor body temperature and quickly check fevered people to prevent the spread of epidemic situations. Long-term accurate and stable work, free from interference from environmental temperature changes and other factors. Used in conjunction with infrared thermal image monitoring, it can accurately display the temperature of the human body, and can effectively achieve the rapid screening of human fever in a large number of people.

1.Wide monitoring area and fast response: Infrared thermal image monitor monitors and quickly measures temperature among the moving people "High temperature individuals";
2.Long-distance work: Non-contact temperature measurement, Detection personnel stay away from the measured population, to avoid cross-contact infection; Abnormal temperature alarm: Fully automatic hotspot tracking and alarm for abnormal body temperature, Improve detection efficiency
3.With infrared metal security check: integrate infrared temperature measurement with metal security check. In front of the metal security door, conduct infrared human body temperature measurement, live human voice alarm, prompt abnormal body temperature, and effectively prevent large-scale disease infection.

name parameter
detector Detector type Uncooled focal plane
Detector resolution 32 * 24
Pixel pitch 17μm
Band 8μm ~ 14μm
Thermal sensitivity 50mk
Temperature measurement Temperature measurement range 33 ° C ~ + 42 ° C
Temperature measurement angle 110 ° x75 ° wide angle
Temperature measurement accuracy ± 0.3 ° C (angle of view within 50cm), ± 0.5 ° C (angle of view within 1.0m)
Compression standard Video compression standard not support
Video format not support
Compressed output code rate not support
interface Analog output not support
Network Interface RJ45 10M / 100M / 1000M adaptive (default), extended support WIFI, NB, LORA, 4G routing
Serial interface Customizable RS-232, RS-485
Alarm interface 1 sound and light alarm
protocol Ethernet / IP, TCP, UDP, HTTP, ICMP
Basic parameters size 235 * 140 * 52 mm
weight 240g
Best working temperature 10 ℃ ~ + 30 ℃
Working humidity 0 ~ 90% RH (non-condensing)
Voltage 12V
Power consumption Less than 3W
Secondary development Development support Provide programmable command interface
