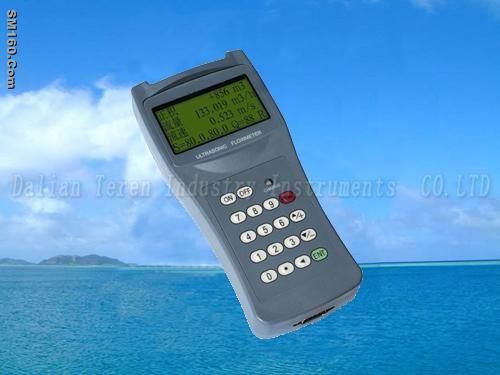

Hand-held ultrasonic flow meters

Negotiable / Piece(s)

Min. Order 1 Piece(s)

Dalian Teren Industry Instruments Import and Export CO.LTD

Hand-held ultrasonic flow meters

Price: Negotiable / Piece(s)
Min. Order: 1 Piece(s)
Stock: 0
Port

Send Inquiry Favorite

Dalian Teren Industry Instruments Import and Export CO.LTD

Location:: 辽宁,China
Main Category:: Hardware and Machinery
Main Products:: ultrasonic flow meters ,ultrasonic level meters ,ultrasonic water meters ,Gas meters ,ultrasonic thickness meters and many the same series products .

Contact Info.

Product Description

Linearity	0.5%
Repeatability	0.2%
Accuracy	±1% of reading at rates>0.6 ft/s. ±0.5% with on-site calibration
Response Time	0-999 seconds, user-configurable
Velocity	±0.03 - ±105 ft/s (±0.01 - ±30 m/s), bi-directional
Pipe Size	15mm - 6,000mm
Rate Units	Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.
Totaliser	7-digit totals for net, positive and negative flow
Liquid Types	Virtually all liquids
Security	Setup lockout. Access code needed for unlocking
Display	4x16 English letters
Communication Interface	RS-232C, baud-rate: from 75 to 115,200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry.
Transducers	Model M1 for standard, other 3 models for optional
Transducer Cable	Standard 10m, optional 2x1,500 (500m)
Power Supply	3 AAA Ni-H built-in batteries. When fully charged it will last over 10 hours of operation.100V-240VAC for the charger
Data Logger	Built-in data logger can store over 2,000 lines of data
Manual Totalizer	7-digit press-key-to-go totalizer for calibration
Housing Material	ABS. Aluminum alloy protective case
Case Size	3.9x2.6x0.8 (100mmx66mmx20mm)
Handset Weight	1.2 lbs (514g) with batteries
