Product Description

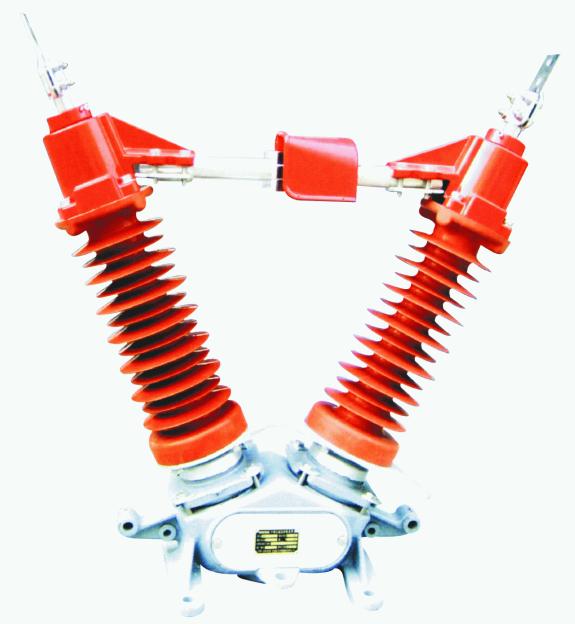

GW5 Series Outdoor High Voltage Disconnect Switch is applicable for rated voltage 40.5Kv, 72.5kV or 126kV, AC 50Hz to make or break High voltage circuit with no load, and electric disconnecting high voltage bus being checked and repaired and circuit breaker etc. Electric apparatuses and high voltage lines. It is also used to open or closeapparatuses and high voltage lines. It is also used to open or close Small capacitance and inductive current. This series of disconnect switch strictly accords with standards: GB1985 <>, IEC129 <> and GB/T11022 <> and so on.
| Technical Specification/Parameter |
| |
Rated current: 630A、1250A、1600A
Rated voltage: 40.5kV
Rated short time withstand current: 20kA、25kA、31.5kA
Rated peak value withstand current: 50kA、63kA、80kA |
