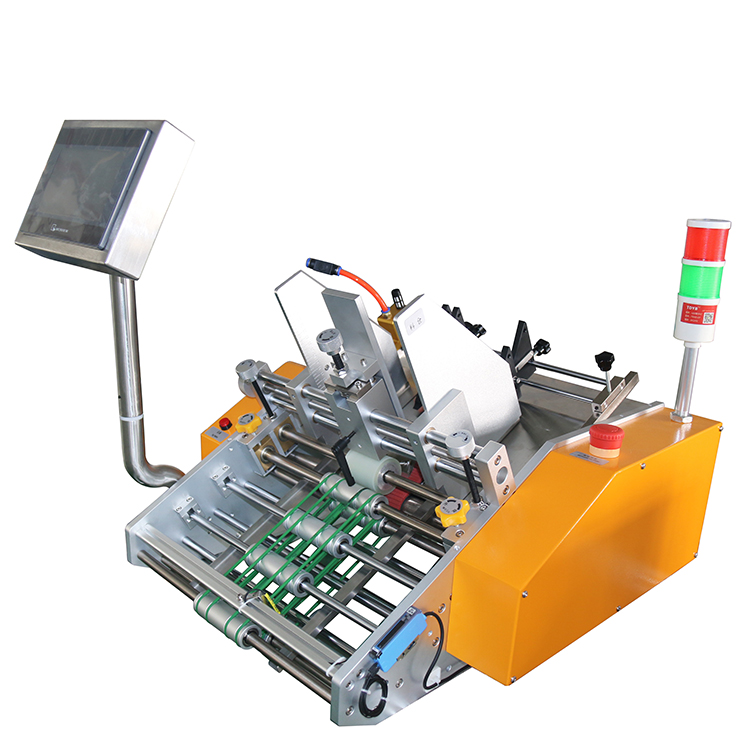

FK-300 Automatic Card Sender/Automatic Card Machine
Scope of Application:
A whole stack of sheeted products such as postcard, greeting card, hangtag, packaging bag, unformed box, label, envelope, red envelope and etc;
Folding products such as instruction, propaganda poster and various folding products with different sizes;
Book-like products such as instruction, card book, notebook, cartoon book, magazine and various book-like products with different sizes, the machine can automatically separate them and convey them to the conveyor belt one by one.
It can not only be used in counting as scorecard separately, but also can be integrated into related equipments as automatic scorecard to cooperate with various kinds of package conveyor, automatic shrink packaging machine and etc.

Main Features of Function:
★ Servo motor drive system, PLC controller and touch interface are easily handled and utilized. Both settings and operation can be easily completed on the touch screen. Meanwhile, with storage function, it can automatically operate when relevant data is set.
★ Servo motor’s highest speed reaches 50m/minute.
★ Automatic card sender joints the full-automatic packing machine and automatically send cards according to different packaging quantity in a fast speed.
★ Automatic alarming function works when card misses or there is no card. Its function of sending single card, several cards or continuous cards can be chosen.
★ It adopts photoelectric control. It can automatically send cards when the general power switch is turn on with photoelectric sensor.
★ It is matched automated packaging equipment, realizing integration of automatic packaging genuinely.
★ The system itself has many function settings, including pretest card length, setting of card quantity each time, automatically stopping working and giving an alarm when there are double card or no card, with real time on-line monitoring.
★ Its structure is reasonably designed and can change quick-wear parts in a simple and quick way.
Technical specifications:
Speed of sending cards 500 pieces/minute(related to card’s size)
Thickness of sending cards 0.1mm-3mm
Size of sending cards Sending card’s length: 50-300 mm (can be customized according to requirements)
Sending card’s width: 110-300 mm (can be customized according to requirements)
Power control system Servo motor drive PLC control
Voltage and power 220V/450W
Boundary dimension About(length)620×(width)670×(height)700mm
Weight About 35kg
