Product Description
Ⅰ.Overview

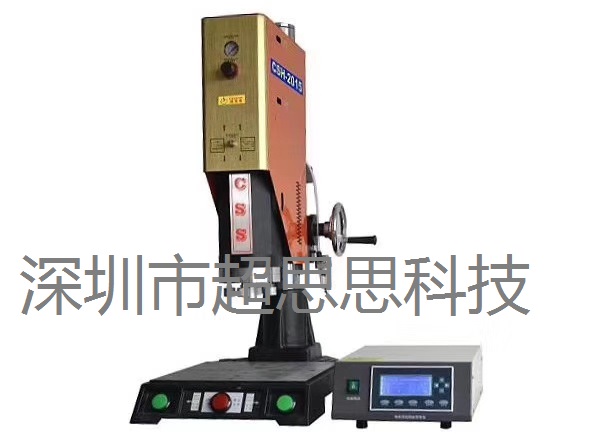

This machine is the latest research and development of our company. It uses the digital technology to realize the intelligent ultrasonic plastic welding machine, which is a smart ultrasonic plastic welding machine, which can realize electronic tuning, automatic tracking, power steeples adjustment and many intelligent protections. It has overcome many shortcomings of traditional analog circuit, such as frequency tracking range, poor protection, hardware complexity, poor reliability, etc.. The advent of the machine is the ultrasonic wave of the past; high-tech products have become simple and easy to use, high reliability, convenient maintenance, so that the ultrasonic technology has been greatly popularized.
Ⅱ. Main characteristics:
1 Electronic tuning, automatic frequency tracking (AFC), wide range of mold.
2 Kinds of welding mode: automatic mode, debug mode.
3 Large size LCD display, display content rich, intuitive.
4 Full digital technology, hardware circuit is simple, single board computer, low failure rate, maintenance simple.
5 Comprehensive protection.
Ⅲ. Technical parameters:
1, Input power: single phase AC220V 50HZ
2, Working frequency: 20KHZ depending on the specific requirements of customers.
3, Output power: 0-1500W.
4, Input power factor: 80%
5, Cylinder stroke: 75mm.
6, Welding head screw connection: 3/8*30
7, Input gas source 0-8kg/ c㎡
8, Electric box (length 380x width290x height 110mm), rack: (length 650x width 390x height 1000mm).
