Product Description

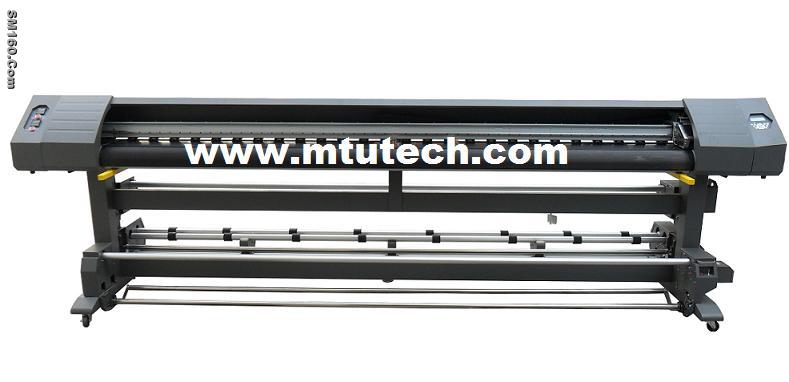

Eco Solvent Printer 3.2m with Epson DX7 print heads( MT-Starjet7702L)
The Seventh-Generation (DX7) Micro Piezo Printing Technology
As the advanced version of the DX-5 head, DX-7 head stands for the better reliability and stability. Besides better ink droplets and consistency, the working life of the print head has improved dramatically. The DX7 is much more durable than DX5 for the eco-solvent ink printing. MT-Starjet 7702L printer is equipped with two high efficient DX-7 print heads, and it is proved to have 15% print head increasing.
Expertise on High Precision Large Format Printer Manufacturing
We put high precision 3.2m super-wide photo printer in mass-production for years, and this series of printers is very mature and stable products. Thus, our company becomes one of the rare factory can manufacture 3.2m super-wide photo printer in the world. It is totally under-estimate, if you think you only can use MT-Starjet 7702L to print two rolls of 1.5m width media at the same time. This beast can meet the demands of many special markets and far beyond your imagination, its uniqueness is the guarantee of your profit and fortune.
Best Printer Ever Made to Process
MT-Starjet7702L printer has the best combination, super-wide and high precision. It does not only meet the demands of regular advertising printing, but also can accept special orders of super-wide size to get better profit. MT-Starjet 7702L printer is also suitable for the mature company to increase productivity and bring up new business opportunities.
Features
1. DX-7 Micro Piezo print Technology
DX-7 print head with micro piezo print technology can show not only the excellent printing quality, but also the durability to the Eco-solvent inks. DX-7 print head has a longer and more durable working life. The improvement of printing precision makes the ink droplets smaller, and the stability is better than that of DX-5 print head.
2. 3.2m Super-Wide Print Width
Not only can meet the demands of regular printing, but also accepts the special order of super-wide size and expand the business range. Super-wide inkjet printer can use in the textile and other special fields, and the precision is much better than that of the common solvent printers.
3. Dual Print Head Design
The technology of two print heads is the mature technology that we bring out to the market in the early stage for years. Now the product with two DX-7 print heads will definitely replace the previous version of printers with DX-5 print heads.
4. Comprehensive Media Handling
The standard media handling includes the automatic feeding&take up system that can load up as heavy as 200kgs. The heating system and hot air drying system which can now easily print on flex banner and diversity media.
5. 1.8m Printer also Available
For the best product coverage, the 1.8m printers with one DX-7 print head(MT-Starjet 7701) model, and two DX-7 heads(MT-Starjet 7702) model are also available for your easy choice and best buy.
Specification
Item: MT-Starjet 7702L
Print head: Two Epson DX7 Micro-Piezo
Number of Nozzles: 1440nozzles per head
Color :4 Color:Cyan, Magenta, Yellow, Black
Height of print head :2-5mm
Size of ink-droplet: 1.5pl-21pl
Printing Width : 3.2m
Speed: 3pass 34.5sq.m per hour; 4 pass 26.5sq.m per hour; 6pass21.0sq.m per hour; 8pass13.0sq.m per hour
Media Width: 3300mm
Media take up: Yes
Media feeder: yes
Media payload: 200kgs
Heating System: Print Heater and Post heater with PID temperature control temperature range: room temperature to 80 centi degree
Ink :Eco Solvent Ink;Water-based Dye Ink; Reactive printing ink
Ink Cartridge: 8*350ml continuous ink supply
Rip Software: Iprint3.0
Control Software: Print Console
Operation System: MS Windows XP& Windows7
Interface: USB2.0 & RS 232
Power Voltage: AC220-240V 50-60HZ or AC110-120V 50-60HZ
Printing Environment: Temperature: 20-25 centi degree, Humidity: 40-60%
Printer dimension: W4300*D900* H1250mm
Packing dimension: W4350*D930* H730mm
Net Weight : 320kgs
