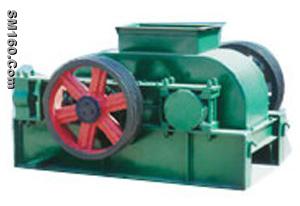

double-roller crusher is suitable for the cement, chemical, electric power, metallurgy, building materials, refractory and other industrial sectors crushing medium hard materials, such as limestone, slag, coke, coal and other materials in pieces, fine work

Double rollers crusher is suitable for cement, chemical, electric power, metallurgy, building materials, fire-proof material and etc industrial departments to break medium hardness materials, such as the limestone, coke, coal, slag in the secondary, fine operation
　　　This series of roll crusher mainly composed by roller、the roller bearing support、pressed and adjusting device、driving device etc.
Working principle：
The discharging-size regulation: between two roller equipped with cuneate or gasket adjusting device, top of the wedge device capped with adjustment bolts, when the adjustment bolts pull upward wedge which will bear against the fixed wheel to make it deviate from the movable roller wheel, then the gap between wheels become large, discharging size become bigger, otherwise the opposite. gasket device is through the quantity or thickness to adjust the materials size, when adding gaskets the gap between wheels become large , when reducing gaskets the gap between wheels become small .so the discharging size becomes small
Roll crusher to pay attention to the following:

    1）To strengthen the work to the removal of iron ore. Non-broken material (solder first class materials) fall into the room on roller crusher damage, resulting in parking accident. So breakers should be installed before the addition of iron device.
    2）Viscous material easy to plug the break room, plug in the treatment failure should stop processing, not to poke mine in operation.
    3）When dealing with large more materials, we should note that large ore easily squeezed out from the break room, to prevent injury, or damage equipment.
    4）Roll crusher run a long time, due to the roll surface wear larger size too small will lead to products, then adjust the arrangement to pay attention to mine mouth or on equipment maintenance.
    5）Strengthen the inspection of equipment, lubrication equipment parts on time and fuel to maintain good lubrication equipment.

On the roll crusher main technical parameters

type and specification	input size(mm)	output size(mm)	capacity(T/h)	motor power(kw)	Overall dimension(mm)	weight (T)
2PGΦ200×75	10	0－4	0.86	15	525×388×330	1.1
2PGΦ400×250	≤25	2—8	5—10	11	1430×1481×816	1.1
2PGΦ610×400	＜36	1—20	10—25	22	1785×2365×1415	3.8
2PGΦ450×500	≤100	25-100	20-55	18.5	2260×2200×766	3.8
2PGΦ600×750	≤300	50-125	60-125	22	2780×3065×1310	8.34
2PGΦ750×500	＜40	2—20	15—40	37	2720×2700×1400	12.25
2PGΦ900×500	＜40	3—40	20—50	44	2750×1790×2065	14

In the continuous improvement of product performance, the parameters are subject to change without notice.
