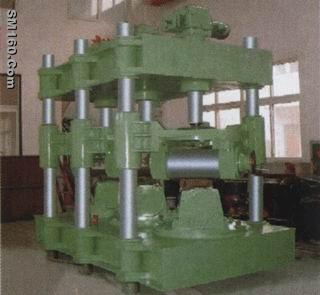

Technical data of STRAIGHTENING MACHINE
1.Max yield limit oft the tube blank: 510 MPa
2.Outer diameter of tube blank:133-385 mm
3.Max. wall thickness of tube blank:4-25 mm
4.Straightening speed:6-30 m/min
5.Max travel of upper roller:310 mm
6.Adjusting range of lower roller
(hand operated):0 ~ 20 mm
7.Arranging pattern of
Straightening rollers: 2-2-2-1 Malposition
8.Lineraity of Straightening pipe:1 mm / m
9.Min.length of steel tube:4000 mm
10.Power driven lifting speed of
upper roller:4.174 mm /S
10.Straightening roller (hand
operated):28.5-33 degree
11.Spacing of straightening roller:1050 mm
12.Throat diameter of Straightening roller:400 mm
13.Length of Straightening roller:550 mm
14.Main motor Power:75 KW/Pcs.
