Product Description

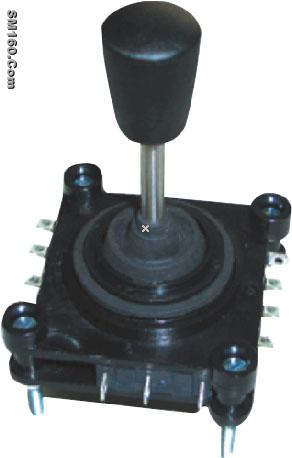

Item number:CV4-YQ-04R2G
1.Mechanical
Controller range:
X,Y two axises:±12°from the central position
Operation pressure:with spring self- reset equipment
X,Y two axises:around 1N~1.2N(100gf~120gf)
Operation temperature range:-20℃~+65℃
Vibrating:10~55HZ98m/S2(10G)
Impact:294m/ S2(30G)
Level of protection:IP65(above install panel)
Lite time:about200,000 times
Weight:about 40g
2.Electrical:
Handle push button switch contact capacity:50VDC/0.1A
Microswitch contact capacity:250VAC/5A
3.Selectable special specification :special mechanical construction:special handle,special height of shaft,special spring reset force,special dust guard,Selectable handle push button switch(trigger switch:black,red,green/switchover switch:black,red);Selectable Microswitch contact capacity:250VAC/10A,singnal and switch are selectable.
