Product Description

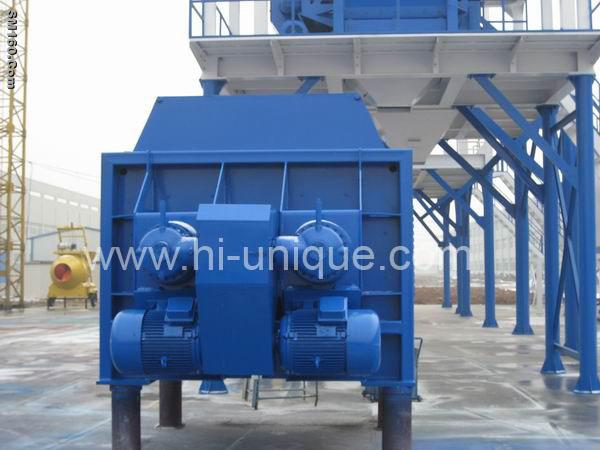

Concrete Mixer (JS2000)
Model: JS2000
Technical Parameter
Capacity: 100~120 m3/H
Drum Volume: 3200 L
Mixing Volume: 2000 L
Aggregate Size: 60mm/80,
Mixing Speed: 21r/min
Mixing Motor: 2×37KW
Weight: 9200KG
Dimension: 5500×2000×2600mm
Concrete Usage:
Water conservancy, electric power, railroad, road, tunnel, the arch of bridge, harbor-wharf and the national defense-project etc...
Components:
Mixing System
Gearbox
Hydraulic system: Italy technology
Transmission System: planetary gear, twin shaft homocentric working
Shaft sealing system: Italy original binding, triple shaft sealing system
Electric oil lubrication system: Italy technology
Safety switch
Shaft axle
Motor
Material Conveyor Belt
Water System
Alarm System: ensure safely working
Products Certificate: TUVRheinland CE, ISO9001:2000
Warranty Terms: More than 12 months
Delivery Time: 15~30 days after receiving advanced payment.
|
Parameter Model
|
JS2000
|
JS3000
|
|
Item
|
|
Discharge volume
|
2000L
|
3000L
|
|
Charging volume
|
3200L
|
4800L
|
|
Theoretical capacity
|
≥100 m3
|
≥150 m3
|
|
Aggregate sizes
|
≤60/80mm
|
≤60/80m
|
|
Working circle
|
60s
|
60s
|
|
Mixing blade
|
Speed
|
23.1r/min
|
21.85r/min
|
|
Quantity
|
2×9
|
2×10
|
|
Mixing motor
|
Model
|
Y25M-4
|
Y280M-6
|
|
Power
|
2×37 kw
|
2×55 kw
|
|
Weight
|
9200kg
|
11450kg
|
|
Dimensions (L x W x H)
|
3810x2480x1710 mm
|
4220x2620x1910 mm
|
