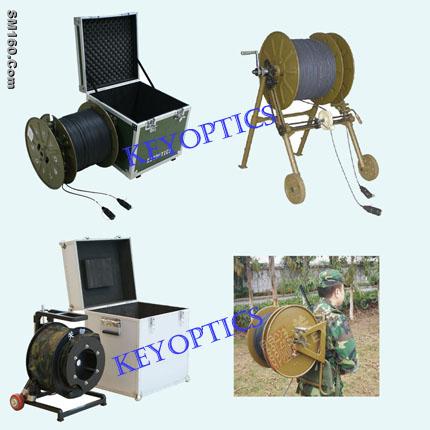

Tactical Fiber Optic Cable Assemblies & Kits

    Tactical Fiber Optic Cable Assemblies is Particularly designed for the quick and iterative distributing&retrieving under the circumstances of military field and harsh environment, nonmetalic cable is light, portable, bendable, oil-resistant, rubbing-resistant, flame retardant, with high tensile, high crush resistance and wide operating temperature.

    Tactical Fiber Optic Cable Assemblies can be used under the following situations: quick deployment and iterative distributing-retrieving of military field communication system; cable deployment of radar, aviation and naval vessel, complicated circumstances of oil field, mining, harbors, TV re-broadcasting, communication emergency repairing.

Cable Features:

1. with 0.9mm tight buffer fiber inside, it adopts compact all dielectric distribution configuration, which provides the optical fiber with extremely high strength and makes Tactical Fiber Optic cables deploying or iterative distributing-retrieving faster.
2. High intensity optical fiber coating with compound structure guarantees cable's stability and durability under complex situations by offering best temperature and minimal attenuation.
3. Composed of high-intensified and flexible FRP, central strengthen member ensures the intensity and bending features of optical cable.
4. A large scope aramid yarn ensures optical fiber with extremely high mechanical intensity
5. SZ stranded technology strengthens Tactical Fiber Optic Cables, and marking Tactical Fiber Optic Cables with high mechanical and transmission performance.
6. Flame retardant PU, plolyester elastomer guarantees structure stability and features of crush-resistant, rubbing-resistant, oil-resistant and flame retardant.
7. RoHS compliant.

Tactical Fiber Optic Cables Assemblies & kits includes a set length of cable, Military connectors, FC connectors and a special design reel for fast distributing and retrieving.

Tactical Fiber Optic Cables Assemblies Features：

1. All dielectric high mechanical performance and wide operation temperature range cable.
2. Standard neutral click lock connector, water resistant and dust protecting.
3. Neutral connectors that can direct connect between socket and flanging socket, socket and socket, flanging socket and flanging socket.
4. The orientation pin design ensures fast blind connection, and the precision ferrule makes the interchangeable and repeatable connection better performance.5. Special design reel with automatic cable arranger for fast, easy distribution and retrieving.

Applications:
1. Military field communication system.
2. Live TV broadcasting, oil field, harbors communication.
3. Optical communication line rush repairing.

Ordering Information：
 Example:K2-B1-R-R-1000-E
         ①②-③-④-⑤-⑥
   ①K=Tactical Fiber Optic Cables Assemblies
   ②Fiber Count : Up to 6 fibers
   ③Fiber Types
     A1a=50/125μm Multimode
     A1b=62.5/125μm Multimode
     OM3=50/125μm OM3 Multimode
     B1=G.652D Single-mode
     B4=G.655 Single-mode
   ④⑤Standard Neutral Connector
     R=Receptacle for Tactical Fiber Optic Cables
     W=Wall Mounted Receptacle for Tactical Fiber Optic Cables
     FC，SC，ST=Normal Connector
   ⑥Tactical Fiber Optic Cables Length
     1000=1000M
     500=500m
     200=200m
   ⑦Distribution/Retrieving Rack Type:
     E=Enhanced Type
     P=Portable Type
     B=Back Mounted Type
