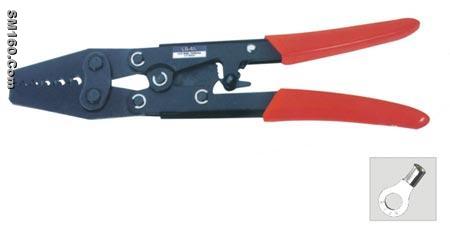

Strength-saving Ratchet Terminal Crimping Tools( Japanese Type)
Ratchet Crimping Tools Ratchet Crimping Tools Ratchet Crimping Tools Ratchet Crimping ToolsCrimpers,  Crimpers, Crimpers, Crimpers, Crimpers, Crimp Tool, Crimp Tools, Hand Crimping ToolCrimpers, Crimp Tool, Crimp Tools, Hand Crimping Tool, Hand Crimping Tools, Ratchet Crimping Tool, Ratchet Crimping Tool, Ratchet Crimping Tools, Ratchet action tool,
Terminal Crimping Tools, Coax Crimping Tools, Coaxial Crimping Tools, Crimping Pliers, Hydraulic Crimping Tool, Hydraulic Crimp Tool,
Wire Stripper, Cable Wire Stripper, Strippers & Crimpers, Wire Stripper Cutter, Wire Stripper for Coaxial Cable, Cable Cutter ,Crimping & Stripping Tool, Cable Tie Tool
1. HS-6L
Range of application: non-insulated cable links
Capacity: 1-6 mm2
AWG: 17-10
Length: 250 mm
Weight: 0.35kgs
2. HS-6M
Range of application:  crimping cap(for insulated closed terminals)
Capacity: 1-10mm2
AWG: 17-7
Length: 250 mm
Weight: 0.35kgs
3.HS-28C
Range of application:  crimping cap(for insulated closed terminals)
Capacity: 6-10mm2
AWG: 17-7
Length: 270 mm
Weight: 0.55kgs
4. HS-13
Range of application:  crimping cap(for insulated closed terminals)
Capacity: 0.5-6mm2
AWG: 20-10
Length: 270 mm
Weight: 0.55kgs
5. HS-16
Range of application:  non-insulated cable links
Capacity: 1.25-16mm2
AWG: 16-5
Length: 270 mm
Weight: 0.55kgs
6. HS-8
Range of application:  non-insulated cable links
Capacity: 1.25-8mm2
AWG: 16-8
Length: 270 mm
Weight: 0.55kgs
7.HS-14
Range of application:  non-insulated cable links
Capacity: 5.5-14mm2
AWG: 10-6
Length: 270 mm
Weight: 0.55kgs
8. HX-4
Range of application:  non-insulated cable links
Capacity: 1-4mm2
AWG: 18-12
Length: 270 mm
Weight: 0.55kgs
9. HX-10
Range of application:  non-insulated cable links
Capacity: 2-10mm2
AWG: 14-8
Length: 270 mm
Weight: 0.55kgs
10. HX-16
Range of application:  non-insulated cable links
Capacity: 6-16mm2
AWG: 10-5
Length: 270 mm
Weight: 0.55kgs
11. HX-26B
Range of application:  non-insulated cable links
Capacity: 6-25mm2
AWG: 10-3
Length: 354 mm
Weight: 0.85kgs
12. HS-22
Range of application:  non-insulated cable links
Capacity: 5.5-25mm2
AWG: 12-4
Length: 354 mm
Weight: 0.85kgs
13.HS-38
Range of application:  non-insulated cable links
Capacity: 6-38mm2
AWG: 10-2
Length: 356 mm
Weight: 0.85kgs
About Crimp Tools and Cable Strippers
Crimp tools and cable strippers are used to prepare cable for installation. There are many different types of crimp tools and cable strippers. Examples include cable tie tools, strength-saving ratchet terminal crimping tools, hand crimp tools, and compression crimp tools. A cable tie tool is used for tightening ties around wire and cable bundles. A hand crimp tool is used in situations that present restrictions to crimp equipment size, weight, and maneuverability such as those presented with wire harness assembly boards. These crimping tools can be either manually-driven or power-driven. Crimp tools and cable strippers are commonly available.

Crimp tools and cable strippers function in a variety of ways. Crimp tools and cable strippers will properly crimp and strip solid or stranded wire, Teflon, PVC, nylon, rubber, neoprene, and most other jacket or insulating compositions. A cable tie tool controls loose wires that can be hazardous. A cable tie tool uses a tension control lever to provide precise tightening. Another lever cuts off the ties, so no additional tie ends will be visible. An Crimps Strips & Cuts Tool has a built in cable stripper as well as a wire cutter that cuts wire in one cycle. The Crimps Strips & Cuts Tool consists of a steel frame with black oxide coating. The precision ground crimp dies and the full-cycle ratcheting mechanism enable the tool to perform consistent terminations. A hand crimp tool consists of a ratchet mechanism hand tool and a set of jaws. The jaws comprise of upper and lower crimp dies. The contact is correctly crimped when the crimping tool is free to open at the fully closed position, e.g., when the ratchet releases. Hand crimp tools provide for a means of accurately locating, supporting, and holding a terminal or connector in place during crimping as opposed to the operator holding the components. A compression crimp tool utilizes a full cycle mechanism to assure consistent connector shut heights. Compression crimp tools achieve maximum mechanical advantage with reasonable hand pressure. Compression crimp tools feature connector shut heights that conform to industry standards and are precisely engineered for specific connector requirements. Crimp tools and cable strippers are designed and manufactured to meet most industry specifications.
