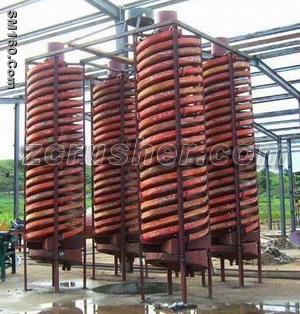

Spiral chute introduction:
Our company has always devoted to technology research of machinery equipment for many years, and the factory of Grooved Spire Chutes specializes in producing Grooved Spire Chutes of every kind. It has the best production equipment, outstanding technical research and development team and produces the best Grooved Spire Chutes for you. Experts with rich experience in Grooved Spire Chutes provide specialized process information about Grooved Spire Chutes for you. This is the ideal choice for you to invest mineral processing industry. Take up your mobilephone now and call the inquiry telephone 0371-67858111 to know more information about Grooved Spire Chutes.
Spiral chute feature:
Reasonable structure, simple installation, small ground occupation, easy operation, steady mine-selecting, clear mine separation, large capacity and high efficiency. This product is made from polychlor specially made plastic, and has the following advantages: light weight, moisture proof, rust prevention, corrosion resistance, strong adaptability of feed ore quantity and fluctuation of concentration, size and grade and no noise.
Spiral chute application:
This equpment is applicable to separate minerals with 0.3??0.02 mm fine material such as iron ore, ilmenite, chromite, sulfurous iron ore, zirconite, rutile, monazite, xenotime, tungsten ore, tin ore, tantalum ore, niobium ore, and other nonferrous metal and rare metal and nonmetalliferous ore with different proportions.
Spiral chute advantage:
steady separating process, easy to control, large allowable change range of feed ore concentration, high enrichment ratio, high recovery ratio, small ground occupation, small water consumption, simple structure, without motor, large capacity, simple installation, easy for operation, low investment and quick effection.
Spiral chute operating principle:
Set up the Grooved Spire Chutes, calibrate vertical line, fix it in proper position with iron frame or wood, convey ore to two feeding inlets of upper roof of spire through sand pump, add makeup water, adjust the concentration of mine pulp, and mine pulp swirl flows from high to low naturally, produce an inertial centrifugal force in the rotary inclined flow rate, according to the difference of proportion, size and shape of ore, under the action of weight and centrifugal force of swirling flow, separate ore from sand, concentrate ore flows into concentrate bucket and comes out through pipe, milltailings enters into milltailings bucket and comes out to sand pool through pipe, and discharge with sand pump, and finish the whole process of separation.
Spiral chute technical parameter:
model |
5LL-1200
|
5LL-900
|
5LL-600
|
5LL-400
|
|
external diameter??mm??
|
1200
|
900
|
600
|
400
|
|
thread pitch??mm??
|
900,720,540
|
675,540,405
|
450,360,270
|
240,180
|
|
ratio of thread pitch and diameter (thread pitch and diameter)
|
0.75,0.6,0.45
|
0.75,0.6,0.45
|
0.75,0.6,0.45
|
0.6,0.45
|
|
lateral gradient (degree)
|
9??
|
9??
|
9??
|
9??
|
|
the most installed spire headages for each table
|
4
|
4
|
3
|
2
|
|
feed ore size??mm??
|
0.3-0.03
|
0.3-0.03
|
0.2-0.02
|
0.2-0.02
|
|
feed ore dimension??%??
|
25-55
|
25-55
|
25-55
|
25-55
|
|
capacity??T/h??
|
4-6
|
2-3
|
0.8-1.2
|
0.15-0.2
|
|
Overall dimension
|
length??mm??
|
1360
|
1060
|
700
|
460
|
|
width??mm??
|
1360
|
1060
|
700
|
460
|
|
height??mm??
|
5230
|
4000
|
2600
|
1500
|
|
wieght??Kg??
|
600
|
400
|
150
|
50
|
