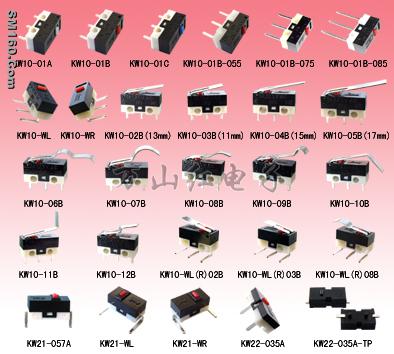

Product Description
KW10-01A
1. Environmental Temperature: -25~+70
2. Rated Load: AC125V 1A
3. Contact Resistance: ≤0.1Ω
4. Insulation Resistance: ≥100MΩ
5. Withstand Voltage: AC250V/min
6. Press force: 45~80gf (as per the request of customer)
7. Mechanical Life: 2000000~3000000 times
KW10-01B
1. Environmental Temperature:-25~+70
2. Rated Load: AC125V 1A
3. Contact Resistance: ≤0.1Ω
4. Insulation Resistance: ≥ 100 MΩ
5. Withstand Voltage: AC250V/min
6. Press force: 45~90gf (as per the request of customer)
7. Mechanical Life: 1000000 times
KW10-01C
1. Environmental Temperature:-25~+70
2. Rated Load: AC125V 1A
3. Contact Resistance: ≤0.1Ω
4. Insulation Resistance: ≥100 MΩ
5. Withstand Voltage: AC250V/min
6. Press force: 80~180gf (as per the request of customer)
7. Mechanical Life: 1000000 times
KW10-01B-055/075/085、KW10-WL/WR、KW21-057A、KW21-WL/WR、KW22-035A、KW22-035A-TP
1. Environmental Temperature:-25~+70
2. Rated Load: AC125V 1A
3. Contact Resistance: ≤0.1Ω
4. Insulation Resistance: ≥100 MΩ
5. Withstand Voltage: AC250V/min
6. Press force: 45~100gf (as per the request of customer)
7. Mechanical Life: 1000000 times
KW10-02B/03B/04B/05B/06B/07B/08B/09B/10B/11B/12B、KW10-WL(R)02B/03B/08B
1. Environmental Temperature:-25~+70
2. Rated Load: AC125V 1A
3. Contact Resistance: ≤0.1Ω
4. Insulation Resistance: ≥100 MΩ
5. Withstand Voltage: AC250V/min
6. Press force: 80~180gf (as per the request of customer)
7. Mechanical Life: 1000000 times
