Product Description

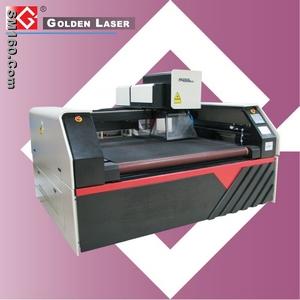

Laser Engraving Machine for Fabric
ZJ(3D)-160100LD High Speed Galvo Laser Engraving Machine
Machine Features
High speed.
Germany Scanlab 3D dynamic Galvo head, one time scan area: 400mmX400mm
Combined functions of engraving, cutting and hollowing.
X, Y axis moving respectively, large-scale engraving and hollowing for batch quantity of textile fabrics.
Conveyor working table with auto-feeding system, it can achieve automatic processing on roll material. (engraving and punching large format textile)
100W / 150W RF metal laser tube, laser beam quality is more stable, laser spot is more slim.
Servo motor to ensure smooth processing in the whole area.
It can select the most precise laser spot, the most strong laser power, and the most accurate positioning mode. Improving product quality and added value.
5-inch LCD screen operating system. Supporting multiple data transmission. Enabling offline or online operation.
Compared with traditional processing method, this machine can maximally reduce material waste (the utilization of material can be increased by 30% than traditional processing method).
Particularly suitable for high speed and fine engraving of textile fabric in roll and in sheet.
Application
Engraving, Hollowing and Cutting Textile, Fabrics, Denim, Jeans, Leather, Shoes, Fur, Bags, Carpet, Rug, Mat, etc
|
Technical Parameter
|
|
Laser Tube
|
CO2 RF metal laser tube
|
|
Laser Power
|
150W
|
|
Working Area
|
1600mmX1000mm
|
|
Working Table
|
Conveyor working table
|
|
No-load Max Speed
|
0-420000mm/min
|
|
Repeating Location Accuracy
|
±0.05mm
|
|
Motion System
|
3-Dimension Dynamic offline motion control system,
5 inches LCD display
|
|
Cooling System
|
Constant temperature water chiller
|
|
Power Supply
|
AC 220V±5% /50Hz
|
|
Format Support
|
AI, BMP, PLT, DXF, DST, etc.
|
|
Standard Collocation
|
1100W exhaust fans (3 sets)
|
|
Optional Collocation
|
100W CO2 RF laser, Auto-feeding system, Zinc-iron-alloy honeycomb working table
|
Working area and laser power can be customized as your requirement.
