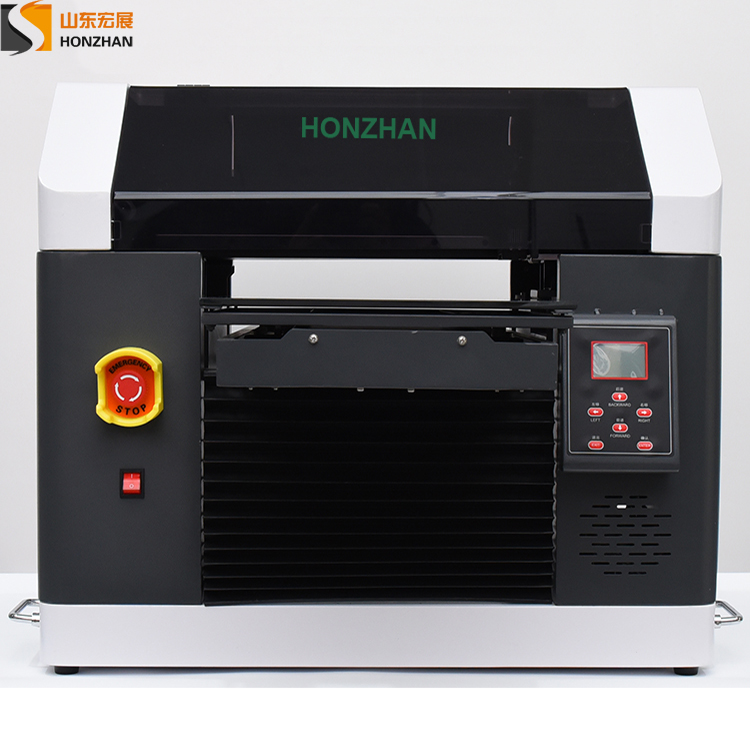

Honzhan HZ-A324 A3 size UV flatbed printer 320×440mm
1. Printer application:

UV printer can print on many flat surface materials, such as wood, acrylic, plastic, resin, foam board, KT board,
PVC, metal, aluminum, glass, ceramic, stone, sticker, leather, phone case, pens, crystal, ABS/EVA, golf ball, bottle, etc.

2. Printer features:

The advantages of our Honzhan HZ-A324 A3 size digital UV printer:
1). Our UV printer equipped with Epson XP600 printhead to meet the demand of high resolution and faster speed.
Epson XP600 printhead has 6 channels × 180nozzles = total 1080 nozzles, its inkjet volume and speed are great.
2). Our printer using industrial grade control boards, realize industrial-grade product design,
belongs to industrial printing machine, fast printing speed, very less after-sales problem.
3). Automatic capping system is easy operation and maintenance for our UV printer.
4). This UV printer is combined inkjet printing and UV led lamp curing drying system,
printed image can be dry directly after printing, and the printed image have embossed effect.
5). We use specially R&D printing software for our printers, very stable and easy to operate, complete in operation data.
Fully intelligent, making printing more efficient. Almost all printing steps are operated by software, very convenient and simple.
6). Simple button operation panel, basically all operations are done through printing software, very convenient and direct.

3. Technical parameters:

Model

HZ-A324 UV printer with single-printhead

HZ-AT324 UV printer with dual-printhead

Printhead

1pc Epson XP600 printhead

2pcs Epson TX800 printheads

Nozzle type

Micropiezo inkjet printing

Print Resolution

360*720dpi, 720*720dpi, 720*1440dpi, 1440*1440dpi, 720*2880dpi

Printing size

320*440mm

Print materials thickness

0-250mm

Operation interface

Button operation panel

Print mode

Unidirection or Bidirection

Nozzle clean

Auto cleaning system with anti clogged flash spray and moisturizing function

Material application type

Wood, acrylic, plastic, foam board, PVC, metal, aluminum, glass,ceramic, stone, sticker, leather, phone case, crystal, golf ball, bottle and many flat surface materials.

Printing Speed

3 square meters per hour

5 square meters per hour

Ink type

UV Ink

Ink Color

CMYK+ 2 White or CMYK+LC+LM

CMYK+ 2 Varnish + 6 White

Ink Cartridges

Continuous ink supply system ink cartridges
