Product Description

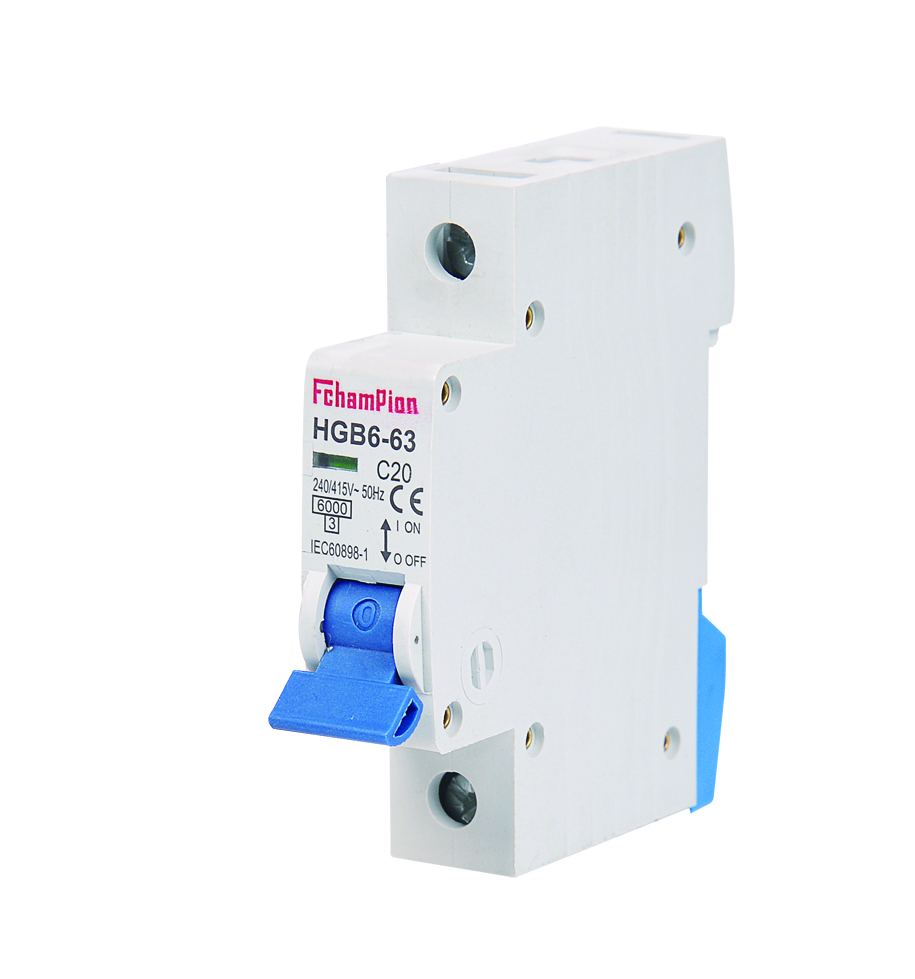

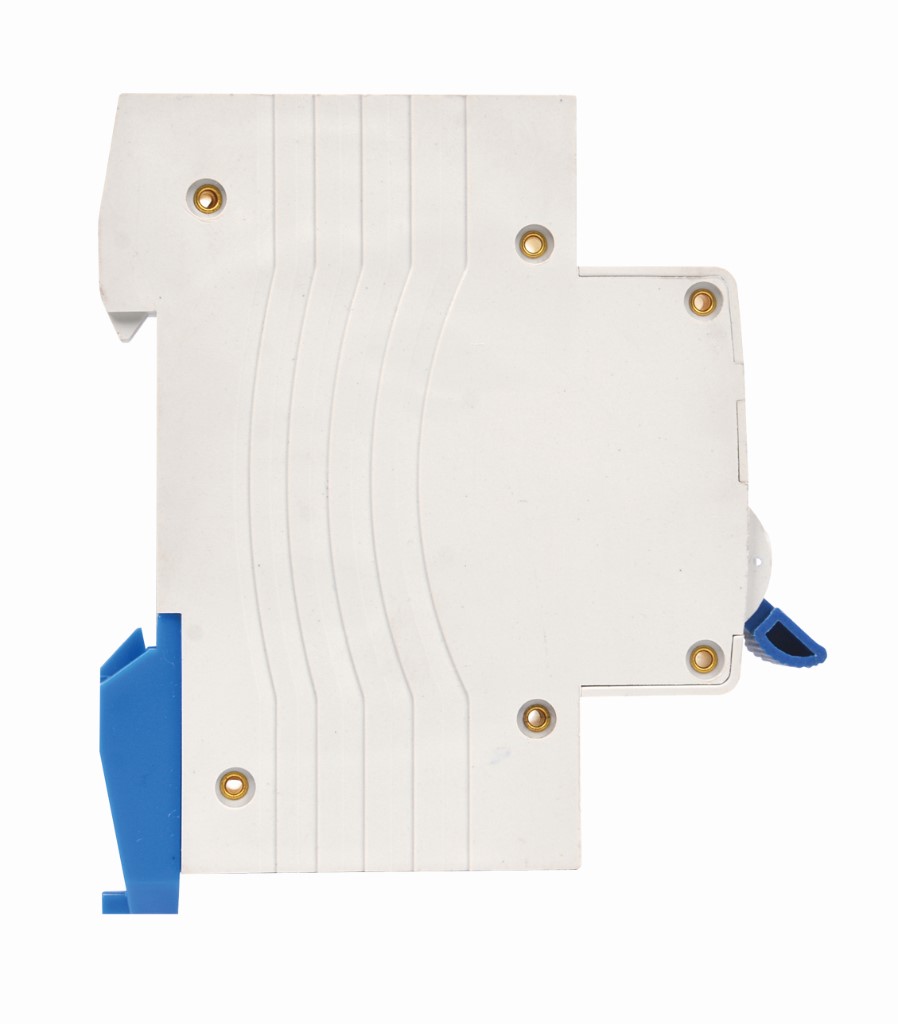

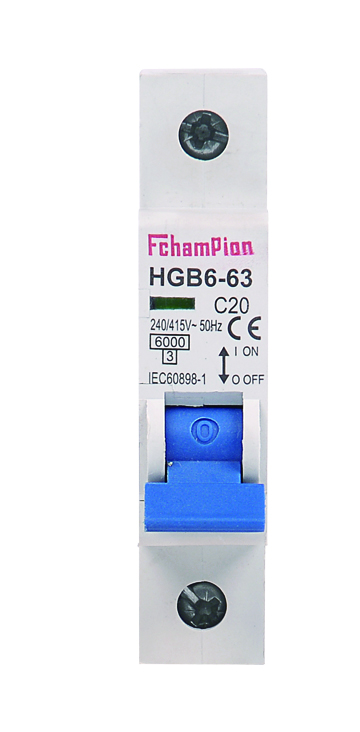

Model No :HGB6-63(MCB)
Standard: IEC/EN60898-1
GB/T10963.1
Instantaneous trip type
:B/C/D
The number of poles :1P,1P+N,2P,3P
3P+N,4P
Rated short circuit breaking capacity (Icn): 4.5/6kA
Rated working current (In) :1-63A
Rated working voltage(Ue) :AC 230/400V
Rated operating frequency :50/60Hz
Rated insulation voltage(Ui ) :500V
Rated impulse withstand voltage (Uimp) :4kV
Mechanical/electrical life :10000/4000 Times
